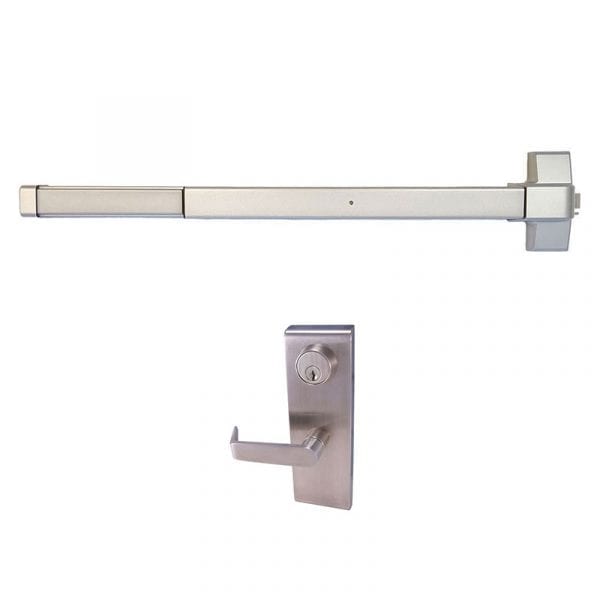

Design Hardware 2000R x LE-08 Rim Exit Device with Heavy-Duty Escutcheon Entry Lever

Usually Ships: 1-2 Business Days
  • Meets ANSI A156.3 – Grade-1 Standards
  • For use w/ 1-3/4″ Metal or Wood Doors
  • 2000R with LE-08 Heavy-Duty Lever (Cylinder Included)

Available Options:

Product Overview

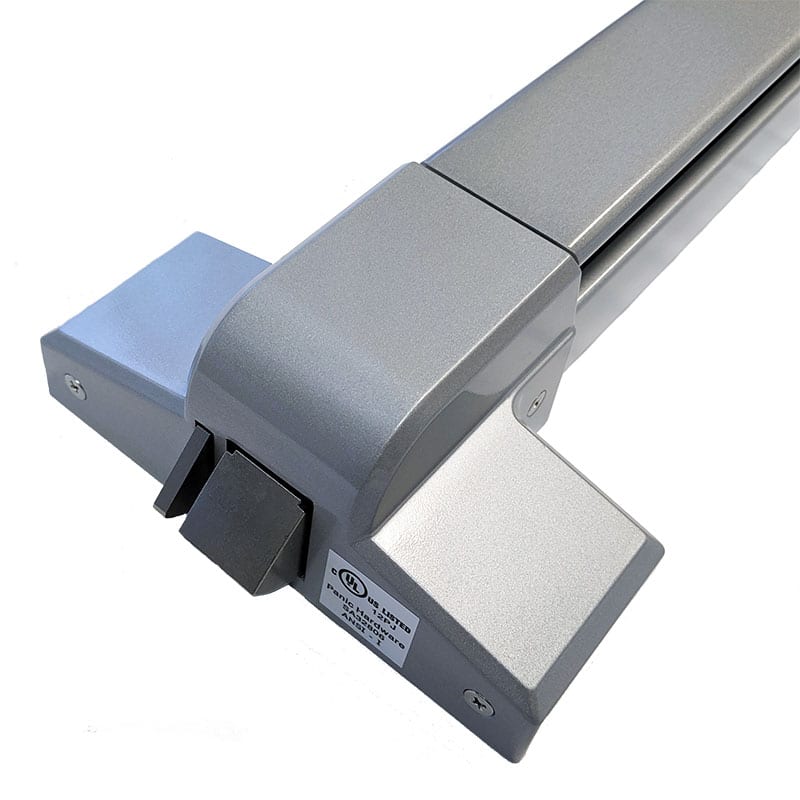

The 2000R is an economical exit device option that is competitively priced to keep your project on budget. The 2000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act providing you with durability, toughness, and safety. Design Hardware products meet or exceed industry standards and can be substituted for any other specified brand.

The LE trim is the heaviest duty trim Design Hardware offers. It is equipped with a unique tailpiece (actuator shaft) that is a direct drive design putting all torque straight into the device. This LE trim also features a field-friendly handing solution.

  • Includes LE-08 Entry Lever (Operates as Classroom Function – Unlock/Lock w/ Key)
  • UL Listing: UL Listed for Panic Exit Hardware
  • (Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Center Case Dim.: 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick – 4″ Minimum stile required
  • Mechanism Case Dim.: 1-5/8″ Height x 1-13/16″ Wide

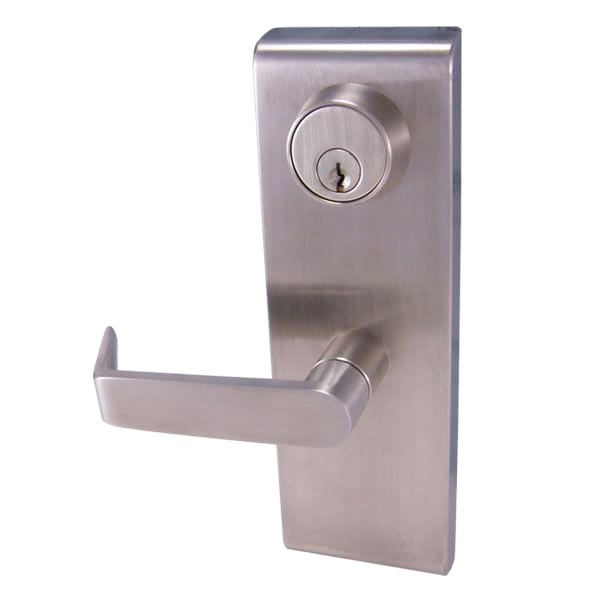

LE-08 Escutcheon Lever Trim

  • Includes Mortise Cylinder
  • Entry Function – Convertible to Night Latch
  • Steel, Zinc Dichromated Chassis – Stainless Steel Exterior Housing
  • Thru bolts to head of exit device
  • 5″ Solid Stainless Steel lever – 2-7/8″ total projection
  • Escutcheon: 3″ Wide x 9″ Height x 3/4″ Projection – Will cover 161 door prep
  • Door Thickness: 1-3/4″ standard
Brand

Model

2000R w/ Dogging Feature, F2000R – 3 Hour Fire-Rated Device (No Dogging)
Length

33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")
Trim

LE-08 – Lever Entry Function (Convertible to Night Latch)
Cylinder

1 1/8″ Mortise cylinder with std. cam (included) – 6 Pin Brass, C Kwy, with 2 Keys
Keyway

Schlage C Keyway
Handing

Completely Reversible
ANSI Grade

Meets & Exceeds ANSI A156.3 – Grade 1 Standards
Usage

Medium Duty
Fire Rating

2000R Non-Rated – F2000R 3 Hour UL Listed
ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Latchbolt

Deadlatching, 5/8" throw

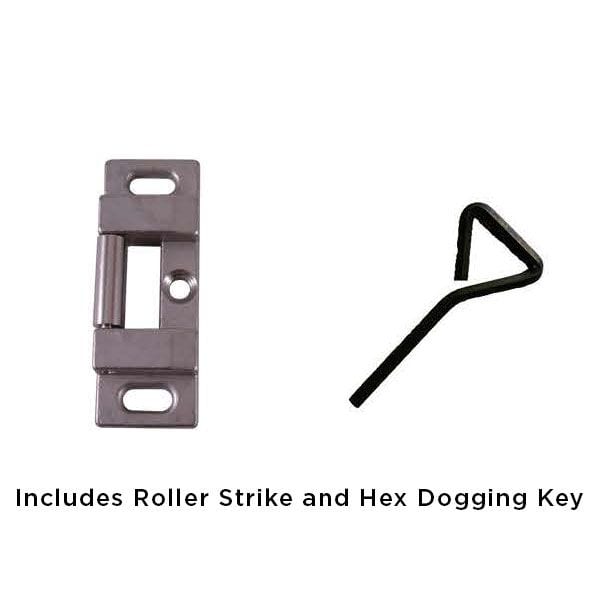

Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Fasteners

Wood, Machine & Self Tapping Machine Screws
Stile Type

Wide (Standard)
Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
Door Applications

1-3/4" Metal and Wood Doors
2000R Installation Instructions F2000R Installation Instructions LE Trim Installation Instructions
