Design Hardware 2000R x DFP-03NL Rim Exit Device with Nightlatch Pull

Usually Ships: 1-2 Business Days

Meets ANSI A156.3 – Grade-1 Standards
For use w/ Metal or Wood Doors

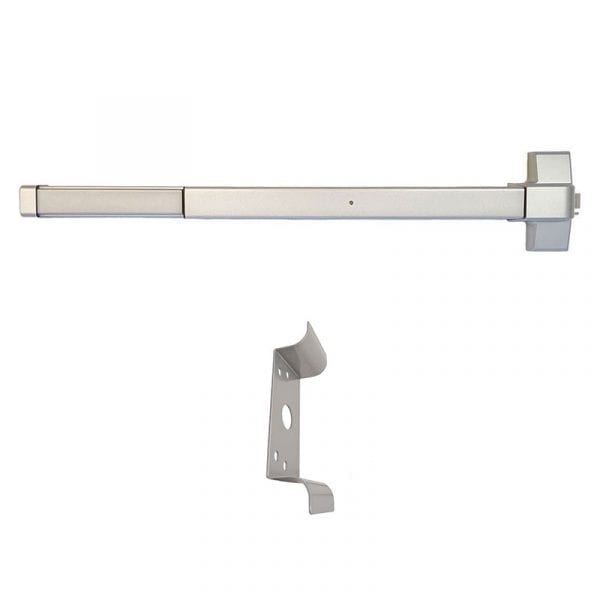

2000R with DFP-03NL Nightlatch Pull (Key Retracts Latchbolt)

Available Options:

Finish

Model

Length

Clear

Subtotal
Options
Total

Quantity:

The 2000R is an economical exit device option that is competitively priced to keep your project on budget. The 2000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act providing you with durability, toughness, and safety. Design Hardware products meet or exceed industry standards and can be substituted for any other specified brand.

DFP-03NL: Economical pull trim option for 2000R. Will cover 161 prep on door. Thru-bolted design thru bolts to head of exit device.

Includes DFP-03NL Nightlatch Pull (Key Retracts Latchbolt) – Less Rim Cylinder
Includes cylinder sleeve for installation into 161 door prep
UL Listing: UL Listed for Panic Exit Hardware
(Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
Center Case Dim.: 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick – 4″ Minimum stile required
Mechanism Case Dim.: 1-5/8″ Height x 1-13/16″ Wide

Brand	Design Hardware
Model	2000R w/ Dogging Feature, F2000R – 3 Hour Fire-Rated Device (No Dogging)
Length	33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")
Trim	DFP-03NL (Nightlatch Pull)
Cylinder	1-1/8" Rim Cylinder (Sold Separately)
ANSI Grade	Meets ANSI A156.3 – Grade 1 Standards
Usage	Medium Duty
Fire Rating	2000R Non-Rated – F2000R 3 Hour UL Listed
Handing	Non Handed – Completely Reversible
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Latchbolt	Deadlatching, 5/8" throw
Strike	Roller Strike with 5/8″ projection & 1/8″ shim
Fasteners	Wood, Machine & Self Tapping Machine Screws
Stile Type	Wide (Standard)
Projections	2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
