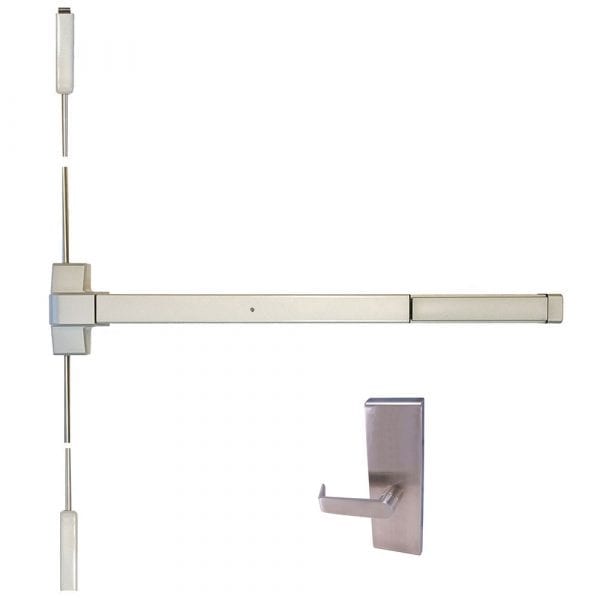

Design Hardware 2000V x LE-08A Surface Vertical Rod Exit Device with Heavy-Duty Escutcheon Passage Lever

Usually Ships: 1-2 Business Days
  • Meets ANSI A156.3 Grade-1 Standards
  • For use w/ Metal or Wood Doors
  • 2000V with LE-08A Heavy-Duty Passage Lever

Available Options:

Product Overview

Design Hardware 2000V x LE-08A Grade-1 Wide Stile Surface Vertical Rod Exit Device with Escutcheon Passage Lever Trim, 7ft Height

The 2000V is an economical exit device option that is competitively priced to keep your project on budget. The 2000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act providing you with durability, toughness, and safety. Design Hardware products meet or exceed industry standards and can be substituted for any other specified brand.

  • Includes LE-08A Passage Lever
  • UL Listing: UL Listed for Panic Exit Hardware
  • (Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Center Case Dim.: 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick – 4″ Minimum stile required
  • Mechanism Case Dim.: 1-5/8″ Height x 1-13/16″ Wide
  • Top Latch: U Shaped Top Latch for Secure Engagement with strike
  • Bottom Latch: Drop Bolt Style Bottom Latch Secures into flat strike & hole in the floor

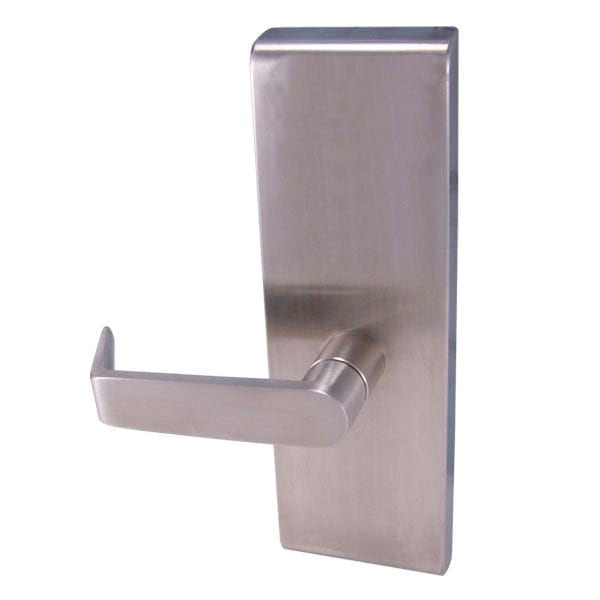

LE-08A Escutcheon Passage Lever Trim

  • Passage Function – Levers Always Free and Open
  • Steel, Zinc Dichromated Chassis – Stainless Steel Exterior Housing
  • Thru bolts to head of exit device
  • 5″ Solid Stainless Steel lever – 2-7/8″ total projection
  • Escutcheon: 3″ Wide x 9″ Height x 3/4″ Projection – Will cover 161 door prep
  • Door Thickness: 1-3/4″ standard
Brand

Finish

Aluminum, Dark Bronze
Length

33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")
Door Height

7'0" Standard – Extended top rods available for up to 10'0" tall doors
ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards
Usage

Medium Duty
Trim

LE-08A (Escutcheon Passage Lever)
Handing

Completely Reversible
Fire Rating

2000V Non-Rated – F2000V 3 Hour UL Listed
ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Wood, Machine & Self Tapping Machine Screws
Stile Type

Wide (Standard)
Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
Device Type

Surface Rod Device
2000V Installation Instructions F2000V Installation Instructions LE Trim Installation Instructions
