Design Hardware I-82-F Passage Single Locking Interconnected Lock

Usually Ships: 3-5 Business Days
  • BHMA Certified ANSI A156.12 Grade 2
  • ANSI F97 function – entrance double locking
  • UL listed for 3-hour fire door

Available Options:

Product Overview

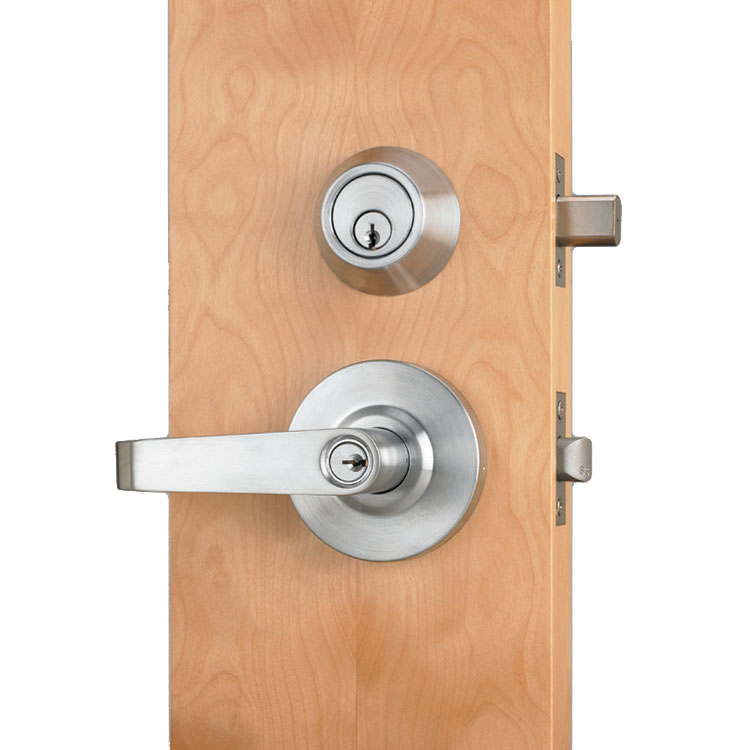

Design Hardware I-82-F Entrance Double Locking Interconnected Lock – Grade-2, ANSI F97, 4″ CTC Length, 2-3/4″ B.S., T-Strike, Flat Lever, Schlage C Keyway, US26D Satin Chrome Finish

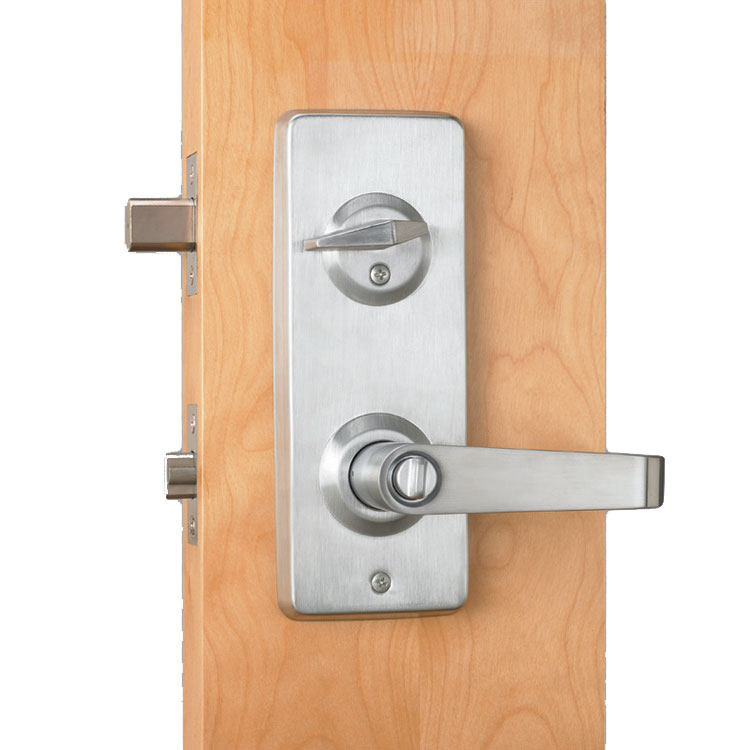

ANSI F97 – Deadbolt is thrown or retracted by key in upper deadbolt cylinder from outside or by thumb turn inside. Deadlatch is retracted by key in outside lever when locked by pushing push button in inside lever. Outside lever may be fixed in locked position by pushing and rotating turn button. Rotating inside lever retracts deadbolt and deadlatch simultaneously.

  • Provides superior protection with deadbolt and interior lock combo
  • Designed for fast and easy installation
  • Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
  • Trim: 5″ Solid zinc diecast levers, 3″ wrought brass roses
  • Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
  • 2 3/4″ backset std. with 1 1/8″ x 2 1/4″ latchface
  • Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
Brand

Finishes

US26D (626) Satin Chrome
Lock Function

Double Locking Entry
Backset

2-3/4"
Latch

½” Throw. “UL” Listed for 3-hour doors
Deadbolt

1” Throw
Keyway

Schlage C Keyway
Strike

2 3/4” T strike & Full lip strike w/ 1/4” R.C. x Standard Deadbolt strike
Fasteners

Combination screws for wood or metal doors & frames
Usage

Medium Duty
ANSI/BHMA Standard

Meets ANSI – A156.12, Series 4000, Grade 2 Standards
ANSI Function

F97
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
Handing

Non-Handed
Door Thickness

1-3/4" to 2"
