Design Hardware M Series Mortise Lock with FE Escutcheon Lever Trim

Usually Ships: 3-5 Business Days
  • Extra Heavy-Duty ANSI Grade-1
  • ADA Compliant, 3 Hour Fire-Rated
  • Select model/function below (image shows M-20 x FE)

Available Options:

Product Overview

Design Hardware M Series Mortise Lock with FE Escutcheon Lever Trim, US26D/626 Satin Chrome Finish

The M Series is a heavy-duty, Grade 1 mortise lock at an affordable price.

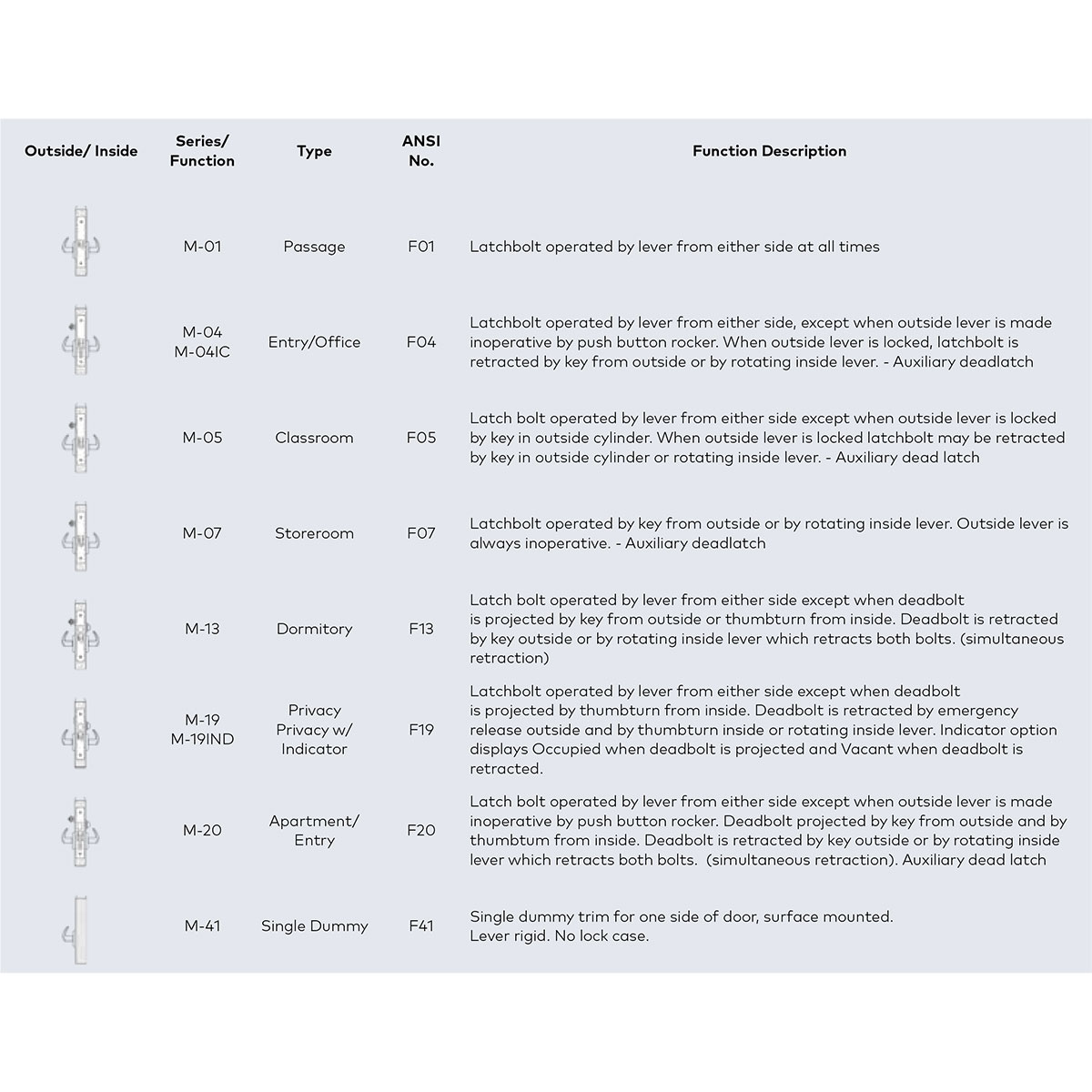

Available Models / Functions:

  • M-01 x FE Passage / ANSI Function F01 / Keyless
  • M-04 x FE Entry/Office / ANSI  Function F04
  • M-05 x FE Classroom / ANSI  Function F05
  • M-07 x FE Storeroom / ANSI  Function F07
  • M-19 x FE Privacy / ANSI  Function F19 / Keyless
  • M-20 x FE Entry Apartment w/ Deadbolt / ANSI  Function F20

Features:

  • ANSI: Meets ANSI – A156.13, Series 1000, Grade 1 Standards
  • UL Listings: UL Listed for “A” Label 3 Hour Fire Doors, Singles, or Pairs
  • ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes with lever trim
  • Lock Case: 2 3/4″ Backset with heavy-gauge zinc dichromated steel
  • Levers: 5″ Full-Length cast Zinc
  • Lever Return: Independent lever return springs to prevent lever sag
  • Backset: 2 3/4″ backset
  • Handing: Handed as RHR – Easily Re-handed in the field
  • Keyed functions include mortise cylinder, Schlage C Keyway

codes

Brand

Model

M-01 x FE Passage, M-04 x FE Entry/Office, M-05 x FE Classroom, M-07 x FE Storeroom, M-19 x FE Privacy, M-20 x FE Entry Apartment w/ Deadbolt
Finish

Satin Chrome
Finishes

US26D (626) Satin Chrome
ANSI Grade

Meets ANSI – A156.13, Series 1000, Grade 1 Standards
Usage

Heavy Duty
Fire Rating

UL Listed for "A" Label 3 Hour Fire Doors
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Latchbolt

Stainless Steel 3 Piece Anti Friction Latch bolt with 3/4" projection
Backset

2-3/4"
Strike

Meets ANSI AII5.1 for frame preparation. Strike is non-handed
Handing

Easily field reversible (ships as RH)
Door Thickness

1-3/4"
Warranty

Limited Lifetime Warranty
