Design Hardware X-76-C Privacy Lever Lock, Curved Lever

Usually Ships: 3-5 Business Days

Meets ANSI A156.2, Series 4000, Grade 1 Standards
ANSI function: F76, ideal for restroom doors
ADA compliant, 3-hour fire-rated

Available Options:

Finish

Clear

Quantity:

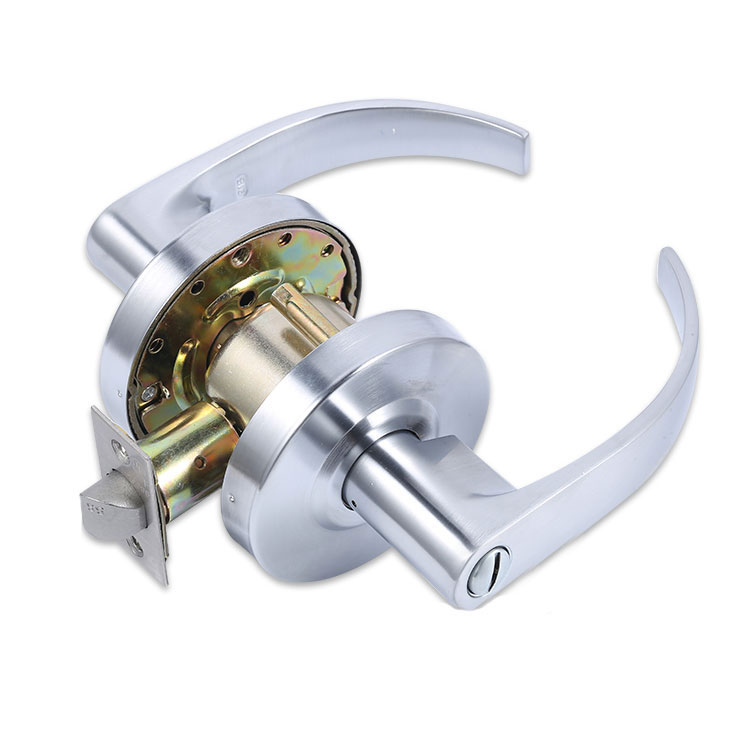

Design Hardware X-76-C Lever Lockset, Privacy Function, Heavy-Duty Grade-1, (C) Curved Lever Design

X-76 Privacy – ANSI Function F76 – Latchbolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside, rotating inside lever or closing door.

Factory Set for 1-3/4″ thick doors – can be adjusted to fit 1-3/8″ to 2″ thick doors
Best for medium to high traffic
Designed for fast and easy installation

Specifications

Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
Trim: 5″ Solid zinc diecast levers, 3-3/8″ wrought brass roses
Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
2-3/4″ backset std. with 1-1/8″ x 2-1/4″ latchface
Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch

Brand	Design Hardware
Finishes	US26D (626) Satin Chrome
Usage	Heavy Duty
ANSI Grade	Meets ANSI – A156.2, Series 4000, Grade 1 Standards
Fire Rating	UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Backset	2-3/4"
Lock Function	Privacy
Latch	1/2" throw – 1" x 2-1/4" face
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Lever Design	C – Curved
Handing	Non Handed – Completely Reversible
Fasteners	Combination screws for wood or metal doors & frames
