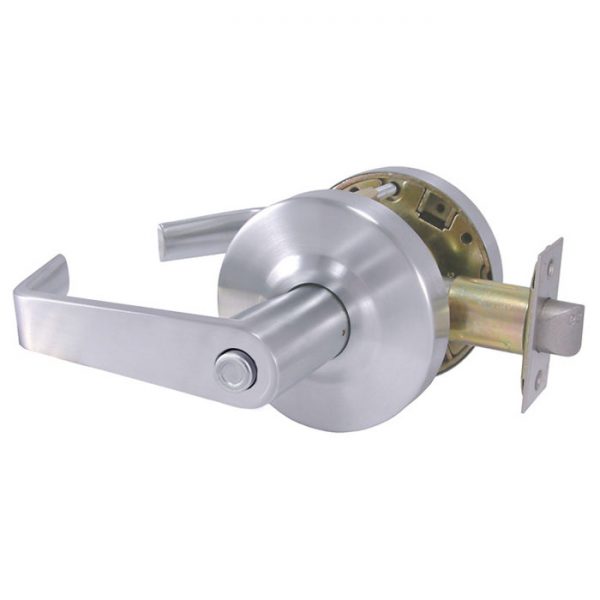

Design Hardware X-76-F Privacy Lever Lock

Usually Ships: 3-5 Business Days
  • Meets ANSI Grade 1 standards
  • ANSI function: F76, ideal for restroom doors
  • ADA compliant, 3-hour fire-rated

Available Options:

Product Overview

Design Hardware X-76-F Lever Lockset, Privacy Function, Heavy-Duty Grade-1, (F) Flat Lever Design

X-76 Privacy – ANSI Function F76 – Latchbolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside, rotating inside lever or closing door.

  • Clutching levers standard for Vandal resistance on locking functions
  • Factory Set for 1-3/4″ thick doors – can be adjusted to fit 1-3/8″ to 2″ thick doors
  • Best for medium to high traffic
  • Designed for fast and easy installation

Specifications

  • Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
  • Trim: 5″ Solid zinc diecast levers, 3-3/8″ wrought brass roses
  • Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
  • 2-3/4″ backset std. with 1-1/8″ x 2-1/4″ latchface
  • Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
Brand

Lock Function

Privacy
Finishes

US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome
Usage

Heavy Duty
ANSI Grade

Meets ANSI – A156.2, Series 4000, Grade 1 Standards
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Backset

2-3/4"
Latch

1/2" throw – 1" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing

Non Handed – Completely Reversible
Fasteners

Combination screws for wood or metal doors & frames
