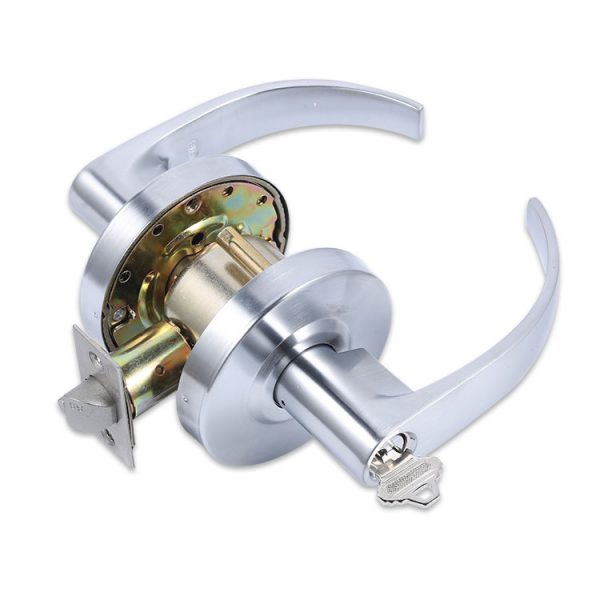

Design Hardware X-82-C Entry/Office Lever Lock, Curved Lever

Usually Ships: 3-5 Business Days

Meets ANSI A156.2, Series 4000, Grade 1 Standards
ANSI function: F82, entry/office
ADA compliant, 3-hour fire-rated

Available Options:

Finish

Clear

Quantity:

Design Hardware X-82-C Lever Lockset, Entry/Office Function, Heavy-Duty Grade-1, (C) Curved Lever Design

X-82 Entry/Office – ANSI Function F82 – Turn/ Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Deadlocking latchbolt operated by inside lever at all times.

Clutching levers standard for Vandal resistance on locking functions
Factory Set for 1-3/4″ thick doors – can be adjusted to fit 1-3/8″ to 2″ thick doors
Best for medium to high traffic
Designed for fast and easy installation

Specifications

Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
Trim: 5″ Solid zinc diecast levers, 3-3/8″ wrought brass roses
Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
2-3/4″ backset std. with 1-1/8″ x 2-1/4″ latchface
Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch

Brand	Design Hardware
Finishes	US26D (626) Satin Chrome
Usage	Heavy Duty
ANSI Grade	Meets ANSI – A156.2, Series 4000, Grade 1 Standards
Fire Rating	UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Lock Function	Entry (Entrance)
Cylinder & Keys	6-pin conventional, keyed different, with 2 keys
Keyway	Schlage C Keyway
Backset	2-3/4"
Latch	1/2" throw – 1" x 2-1/4" face
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing	Non Handed – Completely Reversible
Lever Design	C – Curved
Fasteners	Combination screws for wood or metal doors & frames
