Design Hardware X-82-F Entry/Office Lever Lock

Usually Ships: 3-5 Business Days
  • Meets ANSI Grade 1 standards
  • ANSI function: F82, entry/office
  • ADA compliant, 3-hour fire-rated

Available Options:

Product Overview

Design Hardware X-82-F Lever Lockset, Entry/Office Function, Heavy-Duty Grade-1, (F) Flat Lever Design

X-82 Entry/Office – ANSI Function F82 – Turn/ Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Deadlocking latchbolt operated by inside lever at all times.

  • Clutching levers standard for Vandal resistance on locking functions
  • Factory Set for 1-3/4″ thick doors – can be adjusted to fit 1-3/8″ to 2″ thick doors
  • Best for medium to high traffic
  • Designed for fast and easy installation

Specifications

  • Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
  • Trim: 5″ Solid zinc diecast levers, 3-3/8″ wrought brass roses
  • Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
  • 2-3/4″ backset std. with 1-1/8″ x 2-1/4″ latchface
  • Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
Brand

Lock Function

Entry (Entrance)
Finishes

US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Keyway

Schlage C Keyway
Usage

Heavy Duty
ANSI Grade

Meets ANSI – A156.2, Series 4000, Grade 1 Standards
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Backset

2-3/4"
Latch

1/2" throw – 1" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing

Non Handed – Completely Reversible
Fasteners

Combination screws for wood or metal doors & frames

Related Products

  • design-hardware-x-series-kil

    Design Hardware - X-86-F Storeroom Lever Lock

    Multiple Finishes
    Starting at: $97.49
    Usage: Heavy Duty
  • design-hardware-x-series-kil

    Design Hardware - X-84-F Classroom Lever Lock

    Multiple Finishes
    Starting at: $97.49
    Usage: Heavy Duty
  • design-hardware-x76

    Design Hardware - X-76-F Privacy Lever Lock

    Multiple Finishes
    Starting at: $82.81
    Usage: Heavy Duty
  • design-hardware-x75

    Design Hardware - X-75-F Passage Lever Set

    Multiple Finishes
    Starting at: $79.58
    Usage: Heavy Duty
  • schlage-alx-kil-SAT-626-lever-lock

    Schlage - ALX53P SAT (Saturn) Entrance Lever Lock

    Multiple Finishes
    Starting at: $185.24
    Usage: Medium Duty
  • schlage-alx-kil-SAT-626-lever-lock

    Schlage - ALX50P SAT (Saturn) Entrance/Office Lever Lock

    Multiple Finishes
    Starting at: $185.24
    Usage: Medium Duty
  • trudoor-cl2-82-us26d-entry-lever-lock

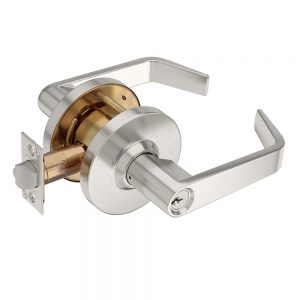

    Trudoor - CL2-82 Entry/Office Lever Lock
