IC-C-US26D

Design Hardware X-82IC-C Entry/Office Lever Lock, Small Format Interchangeable Core Prep, Curved Lever

Usually Ships: 3-5 Business Days
  • Meets ANSI A156.2, Series 4000, Grade 1 Standards
  • ANSI function: F82, entry/office
  • Small format interchangeable core prep (core sold separately)

Available Options:

Product Overview

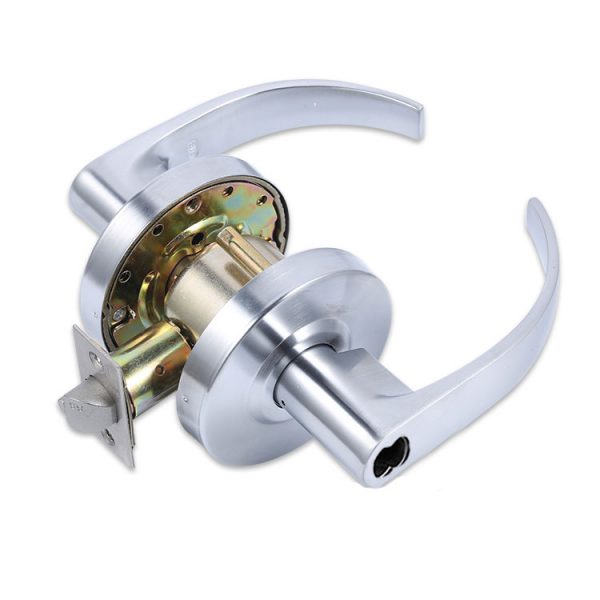

Design Hardware X-82IC-C Lever Lockset, Entry/Office Function, Heavy-Duty Grade-1, (C) Curved Lever Design, Small Format Interchangeable Core Prep

X-82 Entry/Office – ANSI Function F82 – Turn/ Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Deadlocking latchbolt operated by inside lever at all times.

  • SFIC = Small Format Interchangeable Core (Core Sold Separately)
  • Clutching levers standard for Vandal resistance on locking functions
  • Factory Set for 1-3/4″ thick doors – can be adjusted to fit 1-3/8″ to 2″ thick doors
  • Best for medium to high traffic
  • Designed for fast and easy installation

Specifications

  • Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
  • Trim: 5″ Solid zinc diecast levers, 3-3/8″ wrought brass roses
  • Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
  • 2-3/4″ backset std. with 1-1/8″ x 2-1/4″ latchface
  • Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
Brand

Finishes

US26D (626) Satin Chrome
Usage

Heavy Duty
Lock Function

Entry (Entrance)
ANSI Grade

Meets ANSI – A156.2, Series 4000, Grade 1 Standards
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Backset

2-3/4"
Latch

1/2" throw – 1" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing

Non Handed – Completely Reversible
Lever Design

C – Curved
Fasteners

Combination screws for wood or metal doors & frames
