KIL-H-US26D

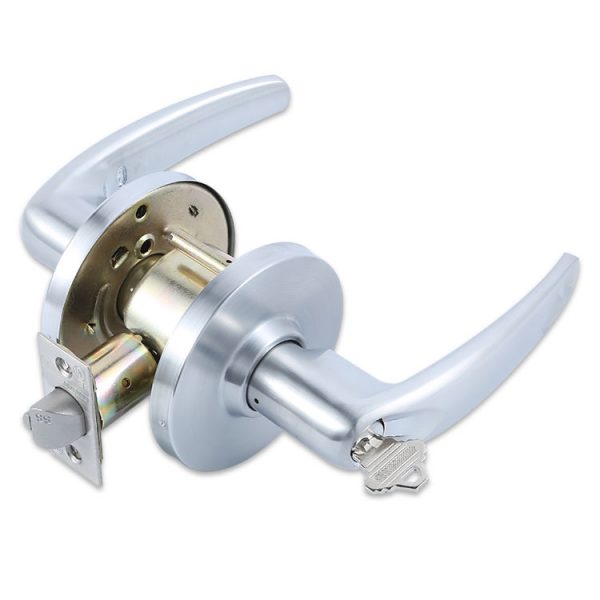

Design Hardware X-84-H Classroom Lever Lock, Half Curved Lever

Usually Ships: 3-5 Business Days
  • Meets ANSI A156.2, Series 4000, Grade 1 Standards
  • ANSI function: F84, classroom
  • ADA compliant, 3-hour fire-rated

Available Options:

Product Overview

Design Hardware X-84-H Lever Lockset, Classroom Function, Heavy-Duty Grade-1, (H) Half Curved Lever Design

X-84 Classroom – ANSI Function F84 – Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside with key. When outside lever is locked, Latchbolt is operated by key in outside lever or by rotating inside lever.

  • Clutching levers standard for Vandal resistance on locking functions
  • Factory Set for 1-3/4″ thick doors – can be adjusted to fit 1-3/8″ to 2″ thick doors
  • Best for medium to high traffic
  • Designed for fast and easy installation

Specifications

  • Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
  • Trim: 5″ Solid zinc diecast levers, 3-3/8″ wrought brass roses
  • Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
  • 2-3/4″ backset std. with 1-1/8″ x 2-1/4″ latchface
  • Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
Brand

Finishes

US26D (626) Satin Chrome
Usage

Heavy Duty
ANSI Grade

Meets ANSI – A156.2, Series 4000, Grade 1 Standards
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Lock Function

Classroom
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Keyway

Schlage C Keyway
Backset

2-3/4"
Latch

1/2" throw – 1" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing

Non Handed – Completely Reversible
Lever Design

H – Half Curved
Fasteners

Combination screws for wood or metal doors & frames
