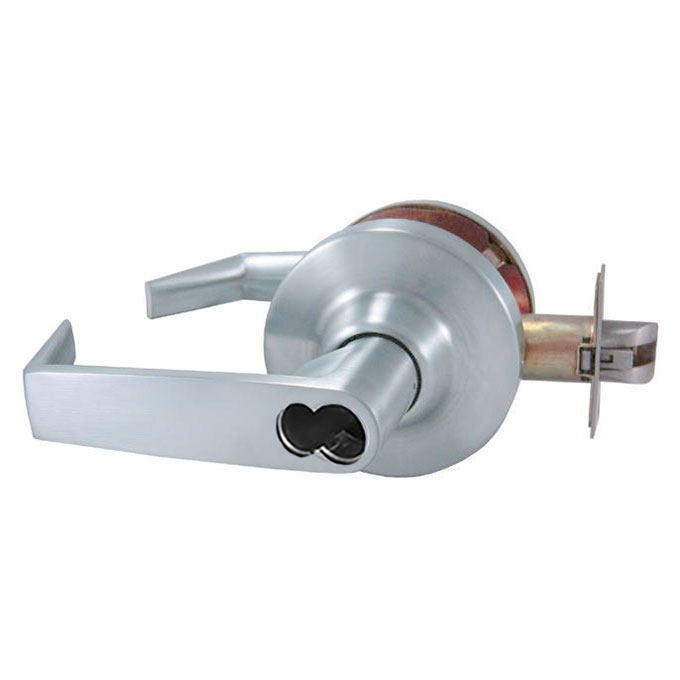

Design Hardware Z-82IC-F Entry/Office Lever Lock, Small Format Interchangeable Core Prep
$114.83
Usually Ships: 3-5 Business Days- Extra heavy-duty, meets ANSI Grade 1 standards
- ANSI function: F82, turn/push-button locking
- Small format interchangeable core prep (core sold separately)
Product Overview
Design Hardware Z-82IC-F Lever Lockset, Entry/Office Function, Extra Heavy-Duty Grade-1, (F) Flat Lever Design, Small Format Interchangeable Core Prep, US26D Satin Chrome Finish
Z-82 Entry / Office – ANSI Function F82 – Turn/ Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Deadlocking latchbolt operated by inside lever at all times.
- SFIC = Small Format Interchangeable Core (Core Sold Separately)
- Tested to withstand over 2 million cycles
- Best for high to very high traffic
- Designed for fast and easy installation
- Clutching levers standard for Vandal resistance on locking functions
Specifications
- Lock Chassis: Steel, Zinc dichromated for Corrosion Resistance
- Trim: 5″ Solid zinc diecast levers, 3 1/2″ wrought brass roses
- Lever Return: Independent lever return springs to prevent lever sag
- Standard Latch: 2-3/4″ backset with 1-1/8″ x 2-1/4″ latchface – Stainless steel latchbolt w/ 3/4″ projection
- Handing: Non-Handed – Completely reversible
| Brand | |
|---|---|
| Finishes | US26D (626) Satin Chrome |
| Usage | Heavy Duty |
| ANSI Grade | Meets ANSI – A156.2, Series 4000, Grade 1 Standards |
| Fire Rating | UL Listed for “A” Label 3 Hour Fire Doors |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Lock Function | Entry (Entrance) |
| Cylinder | Prepped for (SFIC) Small Format Interchangeable Core (less core) |
| Backset | 2-3/4" |
| Latch | Stainless steel latch bolt with 3/4” projection, 1-1/8" x 2-1/4” latchface |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Handing | Non Handed – Completely Reversible |
| Fasteners | Combination screws for wood or metal doors & frames |
