10-EE-630

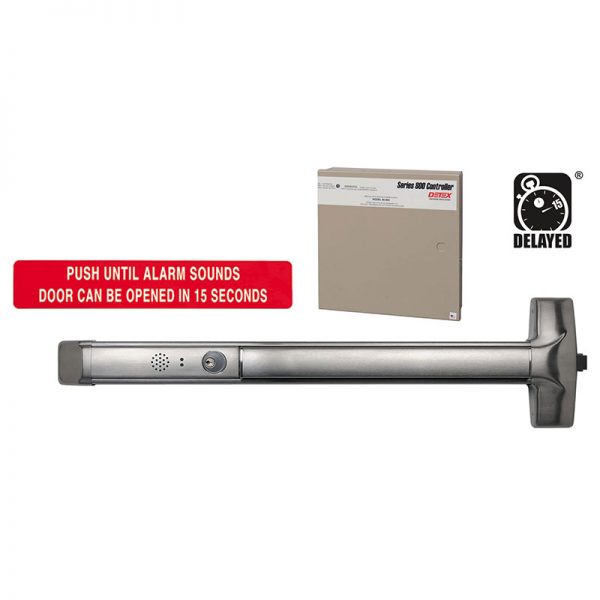

Detex Advantex 10 EE Delayed Egress Alarmed Rim Exit Device, Includes 24VDC Power Supply

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • 15-second delay and 100dB alarm
  • Power supply included

Available Options:

  • Total

Product Overview

Detex 10 EE Advantex Wide Stile Rim Exit Device, Cylinder Dogging, 99 Surface Strike, 15 Second Delayed Egress, Satin Stainless Steel Finish

The Delayed Egress (EE) option is designed for applications that require a delayed egress, alarmed panic device. The alarm, with approximately 100 decibels will sound when someone attempts to exit, alerting management that an unauthorized exit has been attempted. The alarm will continue to sound, but the door will remain locked for 15 seconds, which deters the unauthorized exit and provides the responsible party time to respond to the alarm.

Features

  • Provides immediate egress while securing against entry during a power failure/fire alarm without the use of a maglock
  • Secure installation prevents mistakes, enhances security and reduces maintenance
  • State-of-the-art electronics offer reliable security and instantaneous alarm
  • Armed and disarmed field selectable status indicator
  • Fire alarm input can be connected at power supply or panic bar
  • Power supply included as standard feature
  • Exit only (outside trim sold separately)
  • One cylinder (sold separately) provides arming, disarming, and dogging

Brand

Finishes

630 Satin Stainless Steel
ANSI/BHMA Standard

ANSI/BHMA certified A156.3
Usage

Heavy Duty
Fire Rating

Non-Fire-Rated
Latchbolt

Stainless steel deadlocking, Pullman-type latch bolt
Strike

99 strike standard
Handing

Non-Handed
Stile Type

Wide (Standard)
Minimum Stile Width

4-5/8” with standard 99 strike
Dogging Feature

CD – Cylinder Dogging (less cylinder)
Door Thickness

1-3/4" to 2-1/4"
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Warranty

10 Year Mechanical / 3 year Electrical Limited Manufacturer's Warranty
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
