Detex EAX-2500 AC/DC-Powered Exit Alarm

Usually Ships: 1-2 Business Days

100 dB piezo alarm
AC/DC hardwired power with optional 9VDC backup battery
Requires mortise cylinder (sold separately)

Available Options:

Finish

Model

Clear

Subtotal
Options
Total

Quantity:

Detex EAX-2500 AC/DC Powered Alarm

The EAX-2500 is designed for applications requiring a hardwired AC/DC alarm on secure doors. The alarm, with approximately 100dB, will sound when someone attempts an unauthorized exit. The EAX-2500, with its smaller size and designed to fit in a standard 4″x 4″ outlet box makes it the choice for quick and easy installations on emergency exit and restricted doors.

Requires Mortise Cylinder (Sold Separately)
Field selectable features allow customer to choose status indicators and auto rearm options
Surface and flush mount available using 4″x 4″ double switch/outlet box
Patented cam assembly automatically adjusts for different size cylinders without spacers
Low battery alert is field selectable
Silent arming feature is field selectable
Tamper resistant housing and cover protects electronics
Extended bypass allows alarm to remain silenced when door is open and automatically rearm upon closing of door

Models:

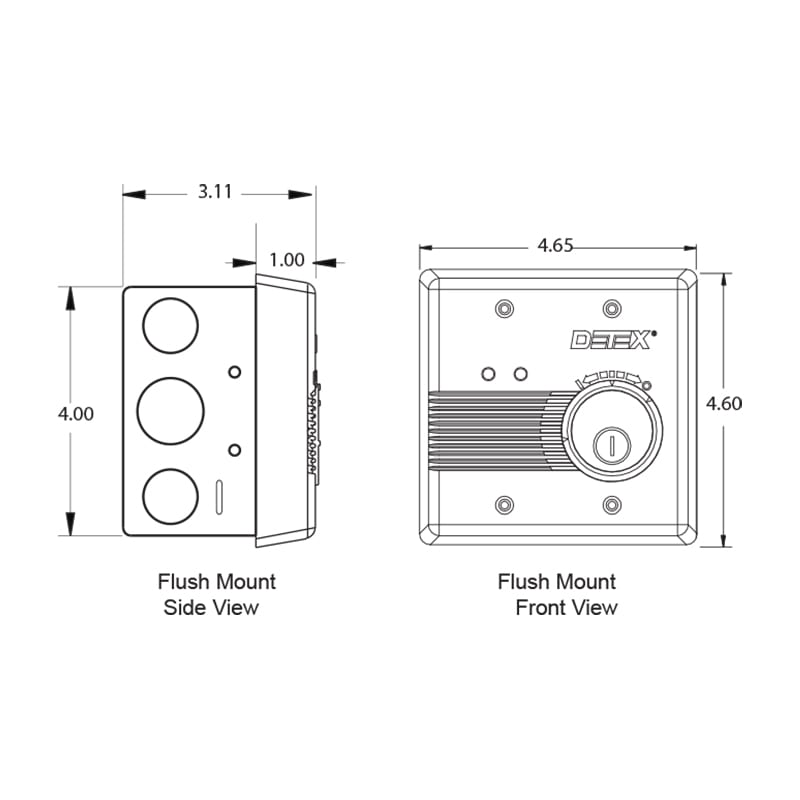

EAX-2500F: Flush Mount AC/DC Powered Alarm
EAX-2500S: Surface Mounted AC/DC Powered Alarm
EAX-2500FK: Kit – Flush Mount, Complete kit contains alarm, warning sign, flush back box, MS-2049F magnetic switch, and 24VAC transformer
EAX-2500SK: Kit – Surface Mount, Complete kit contains alarm, warning sign, surface back box, MS-2049S magnetic switch, and 24VAC transformer

Brand	Detex
Finish	Black, Gray
Model	EAX-2500FK (Flush Mounted, Kit), EAX-2500SK: (Surface Mounted, Kit), EAX-2500F (Flush Mounted), EAX-2500S (Surface Mounted)
Power	AC/DC hardwired power with optional 9VDC backup battery
Mounting	Surface Mount
Cylinder	1-1/8" Mortise Cylinder Required with Standard Cam (Sold Separately)
