Dormakaba 8916 SDS Door Closer with Heavy Duty Parallel Spring Stop Door Saver Arm

$351.85

This item ships FREE! Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade 1 Certified
  • Includes spring stop arm
  • Push side, parallel arm mount only

Product Overview

Dorma 8916 SDS Complete Surface Closer Door, Spring Stop Door Saver Arm, Non Hold Open, Full Cover

The 8900 door closer series designed to provide a highly flexible door control system suitable for institutional or high-traffic commercial applications. Its hydraulic control system features a full range spring power adjustment and backcheck, along with a narrow projection full cover and flatform style arm.

Versatile, durable, and reliable, featuring modern styling for institutional or high-traffic commercial applications.

  • 8916-SDS-FC-SN1-689
  • Includes SDS Arm — Spring stop door saver arm
  • Parallel Arm Mount Only
  • Long term performance
  • Adjustable spring sizes and power
  • Meets barrier-free requirements
  • Adjustable backcheck
  • Corrosion-resistant aluminum body
  • Backed by 25 year warranty

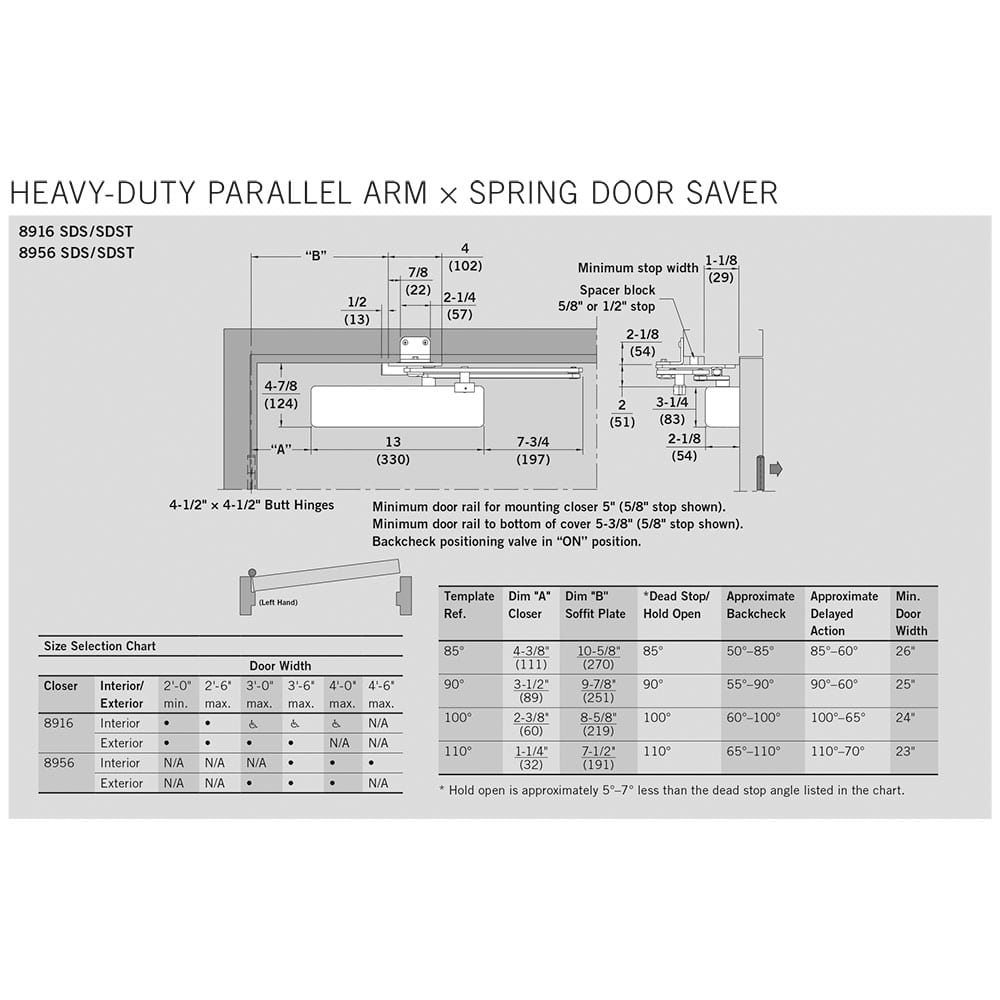

Spring Stop Door Saver Arm

  • Heavy-duty parallel arm with spring-assisted dead stop function
  • Units can be installed to achieve stop at 85°, 90°, 100°, and 110°
  • Maximum opening is 110° (conditions permitting)
  • Arm is non-handed
Brand

Templating (Hole Pattern)

2-1/8" x 5"
Finishes

689 Aluminum (Powder Coated)
Mounting Options

Parallel Arm (Push Side)
Handing

Non-Handed
Spring Size

Adjustable Spring Size 1-6
Body Construction

Cast Aluminum Body
Usage

Heavy Duty
ANSI Grade

ANSI/BHMA A156.4 Grade 1 Certified
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL and CUL listed – Meets UL10C for positive pressure
Cover

Full Cover
Fasteners

SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard
Warranty

25 Year
