Dormakaba QED111 Panic Rim Exit Device

Usually Ships: 10-15 Business Days

Heavy Duty, ANSI/BHMA A156.3 Grade 1
ANSI function 01, exit only (trim sold separately)
UL Listed for panic exit hardware

Available Options:

Finish

Length

Clear

Quantity:

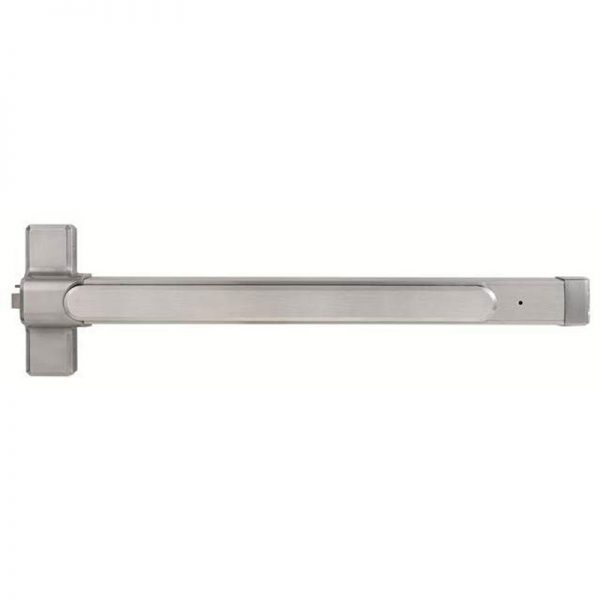

Dormakaba (formerly Stanley) QED111 Grade 1 Rim Exit Device, Wide Stile Pushpad, Hex Dogging, Exit Only

dormakaba’s Commercial Hardware QED100 Series exit devices are designed to accommodate the widest range of uses. The QED100 series is BHMA/ANSI Grade 1 certified, and significantly exceeds performance requirements. The QED100 series comes non-handed and field reversible.

Exit Only (Exit Device Trim sold separately)
UL Listed for Panic Exit Hardware
ANSI/BHMA A156.3 Series—Grade 1
ANSI A117.1 Section 404.2.6 Accessibility Code (ADA compliant)
Standard door thickness: 1-3/4″
Rim stile width: 4-1/4″ (108mm) minimum

Brand	Dormakaba
Finishes	313AN Anodized Dark Bronze, 626 Satin Chrome
Length	36" (32" to 36" Door Width), 48" (36" to 48" Door Width)
Usage	Heavy Duty
ANSI/BHMA Standard	ANSI/BHMA A156.3 Series—Grade 1
Fire Rating	Non-Fire-Rated
Stile Type	Wide (Standard)
Minimum Stile Width	4-1/2"
Door Thickness	1-3/4"
Strike	8Q00254
Dogging Feature	Half turn hex dogging standard
Warranty	Lifetime Mechanical Warranty \| 3 Year Finish Warranty
