Dormakaba Simplex 5010 Mechanical Pushbutton Exit Device Lever Trim with Key Override

Simplex 5000 Series, 5010 Exit Device Combination Lever Lock, 2-3/4″ Backset, 1/2″ Throw Latch, US26D Satin Chrome

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex 5000 Series provides exterior access by combination, while allowing free egress. This fully mechanical lock elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

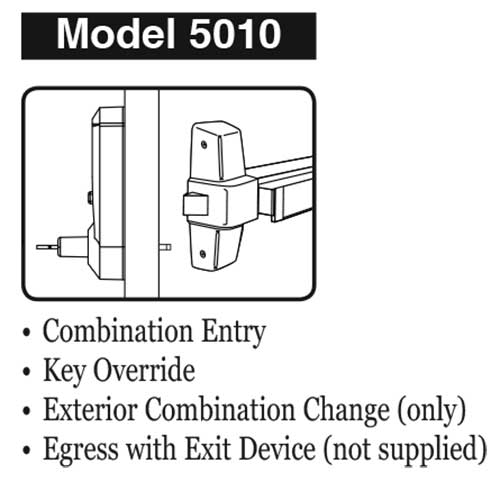

5010: Combination Entry. Key Override. Exterior Combination Change (only). Egress with Exit Device (not supplied). May be “dogged” if Exit Device allows.

• Access Control: Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing the lock from the door
• Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
• Key Override: Key-in-lever cylinder, small format interchangeable core, large format removable core (cores sold separately on models prepped for interchangeable core)
• Accessibility Standard: Americans with Disabilities Act (ADA)

Models

• 5010XSWL-26D-41: Key in lever, Schlage C Keyway
• 5010BWL-26D-41: Prepped for SFIC core (less core)
• 5010CWL-26D-41: Prepped for Corbin Russwin 6-pin LFIC core (less core)
• 5010MWL-26D-41: Prepped for Medeco/Yale/ASSA/Abloy LFIC core (less core)
• 5010RWL-26D-41: Prepped for Sargent LFIC core (less core)
• 5010SWL-26D-41: Prepped for Schlage FSIC core (less core)

Exit Device Compatibility

• Arrow S1250
• Sargent 8888
• Arrow S3883F/S3800
• Von Duprin 22/22F
• Dorma 9300/F9300
• Von Duprin 98/98F
• Cal Royal 9800
• Von Duprin 99/99F
• Cal Royal 2200
• Precision 21/FL21
• Von Duprin XP98/99
• Corbin Russwin ED5200/5200A
• Sargent 2828
• Yale YME2100/2100
• Detex 1001 BP1
• Sargent 3828
• Yale 7100
• Detex 10/F10 Series
• Sargent 8810E/8800
