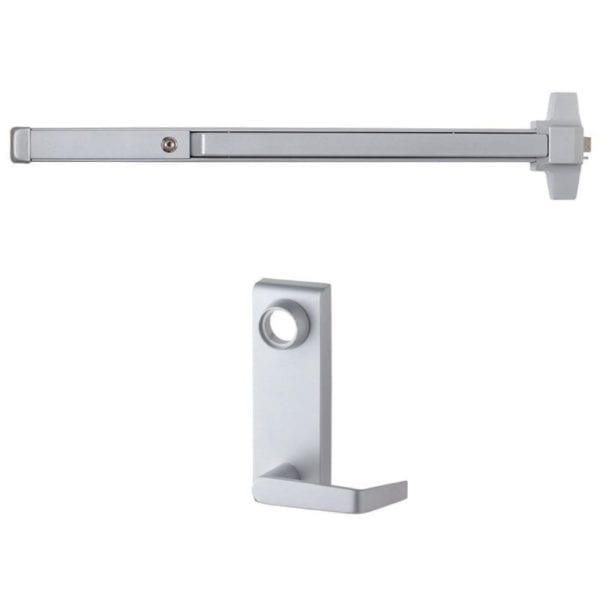

Falcon 20-R-L Rim Panic Bar Exit Device with Escutcheon Entry Lever

Usually Ships: 2-3 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Key locks/unlocks lever
  • Includes 212L Lever (cylinder sold separately)

Available Options:

  • Total

Falcon 20-R-L Grade-1 Rim Exit Device with 212-L Entrance Lever

Falcon® prides itself on dependable, cost-effective products that meet or exceed life safety and building requirements. The Falcon 20 Series, pushbar exit devices are ideal for light-to-medium duty door applications, such as commercial, multi-family, office, and retail. This Grade-1, affordable exit device is offered in multiple functions, lever, and trim options. With the Falcon 20 Series, you’re choosing a quality performing, medium duty pushbar exit device with all metal construction at an unmatched value.

The Falcon 20 Series exit device is an affordable and reliable choice. A certified ANSI/BHMA A156.3-2014 Grade-1 exit device these pushbars are non-handed and will accommodate 161 door prep. The series also offers multiple functions and a full trim complement, including 161 key in lever.

  • Escutcheon Entry Lever (Unlock/Lock w/ Key) – Mortise Cylinder Sold Separately
  • Durable, steel mechanism case construction
  • Standard features include scratch-resistant surfaces and built-in deadlocking
  • Roller Strike Standard
  • 3-1/2″ Minimum stile width
Brand

Finishes

689 Aluminum (Powder Coated)

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Cylinder

1-1/4" Mortise Cylinder (sold separately)

Trim

212L (Entry Lever)

ANSI Grade

Certified ANSI/BHMA A156.3-2014 Grade 1

Usage

Light Duty

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Hand

Non-handed

Strikes

Roller Strike

Fasteners

Universal hardware pack for wood and hollow metal

Fire Rating

20R: Non-Fire-Rated – F20R: 3-Hour Fire-Rated

Stile Type

Wide (Standard)

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Door Applications

1-3/4″ Thick Hollow Metal Doors / Wood Doors
