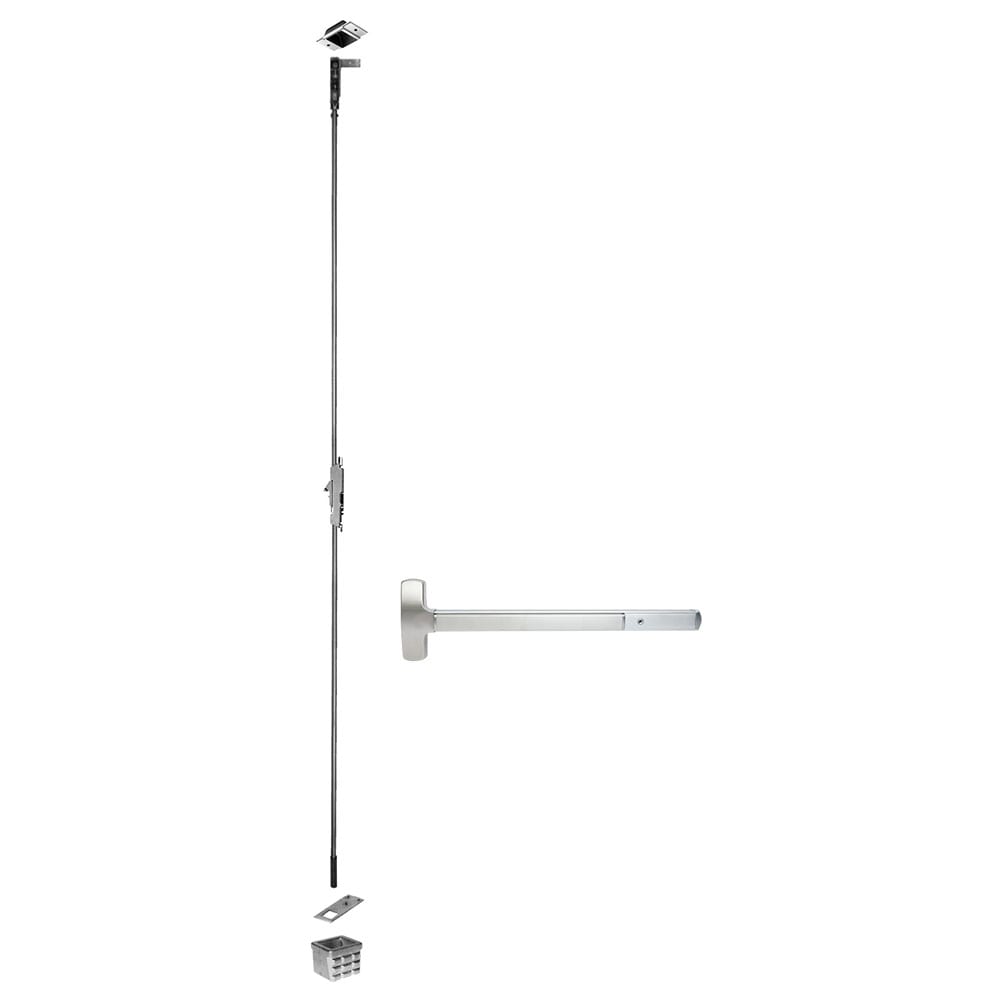

Falcon 25-C-EO/F-25-C-EO Concealed Vertical Rod Panic Bar Exit Device for Metal Door

Usually Ships: 1-2 Business Days

Heavy-Duty – Grade-1 ANSI Certified
For use with hollow metal doors
Streamlined design and clean lines

Available Options:

Length

Fire-Rated

Clear

Quantity:

Concealed vertical rods add strength to the door, while maintaining an attractive appearance. The Falcon 25-C Series concealed vertical rod device offers great value, clean styling, and the security benefits of two-point latching. Falcon’s patented center slide mechanism allows easy rod adjustment in the field. The Falcon F-25-C Series device lets you combine the safety of a fire-rated device with the clean aesthetics that come with a concealed vertical rod installation. In-field adjustme1nt is simple thanks to our patented center slide mechanism. Two-point latching ensures optimal security at the door.

EO = Exit Only, ANSI Function 01 (25 Series Outside Trim Sold Separately)
For doors up to 7’0″ height
US26D Satin Chrome Finish
2-3/4″ maximum projection, 2″ dogged

Brand	Falcon
Length	3'0" (2'8" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)
Handing	Completely Reversible
ANSI Grade	Certified ANSI A156.3-2001 Grade 1 standards
Usage	Heavy Duty
Fire Rating	25C: Non-Fire-rated – F25C: “A” label (3 hr.); 4'0" x 10'0" single doors; 8'0" x 10'0" pair of doors (F-25-M x F-25-V or F-25-C)
Vertical Rods	Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available)
Strikes	4188 mortised top, 2130 bottom standard
Latchbolt	Top Stainless Steel 3/4" throw. Bottom Bolt, 1/2" Throw
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Projections	2-3/4" maximum, 2" dogged
Device Type	Concealed Rod Device
Stile Type	Wide (Standard)
Minimum Stile Width	3-1/2"
Door Applications	1-3/4" Hollow Metal Doors
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
Finishes	US26D (626) Satin Chrome
