Falcon 25-R-L-BE Panic Bar Rim Exit Device with Passage Lever

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI Grade-1 Certified , Made in USA
  • ANSI Function 14 (lever always unlocked and operable)
  • Includes 510L-BE Dane Lever

Available Options:

Product Overview

Falcon 25R-L-BE, 25 Series Rim Exit Device with Blank Escutcheon Trim, Dane Lever Design

The 25-R-L-BE panic rim exit device with passage lever trim is for use with single doors and double doors with a mullion.

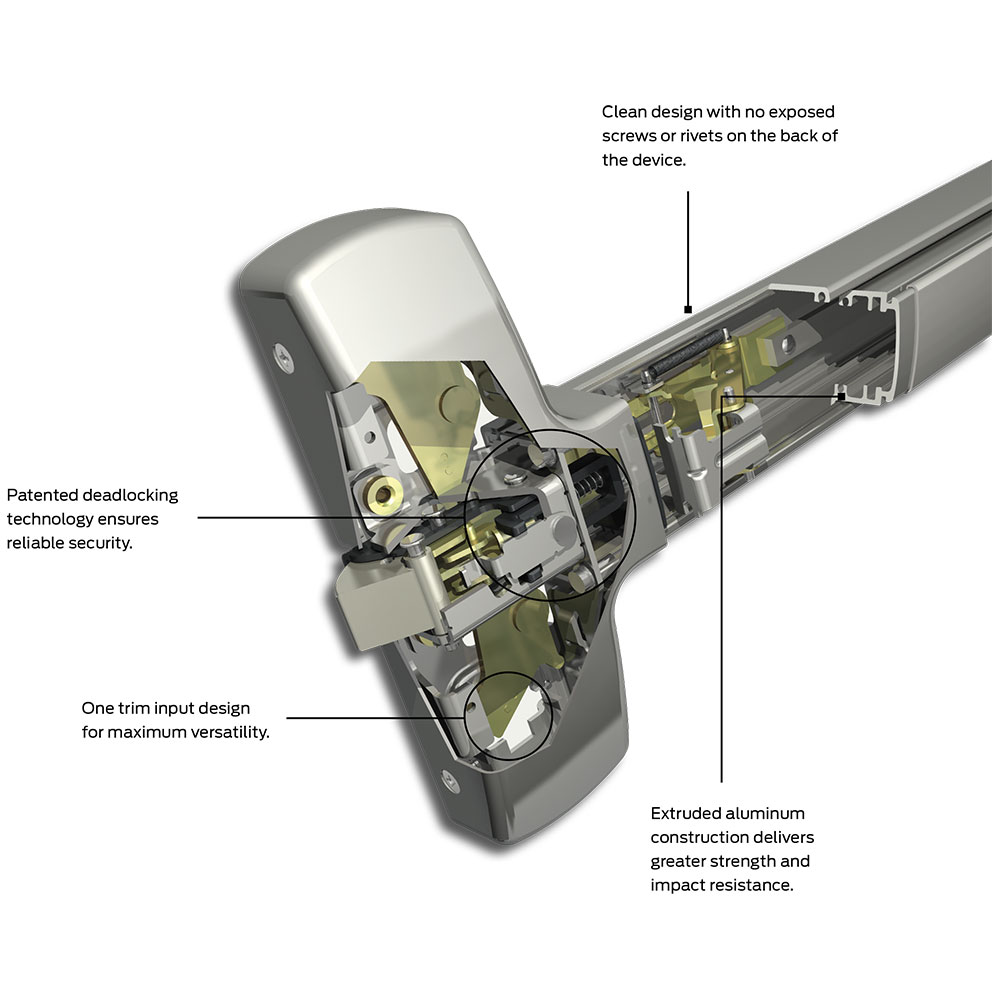

No exposed screws or rivets on the back of the device for a streamlined design and clean lines – when installed on full glass doors. The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design.

  • Includes 510L-BE lever trim
  • All mounting screws are concealed, sheet metal screws and machine screws standard
  • Stock Sizes: 3′ and 4′ – Cut to size in field

510L-BE Lever Trim (Passage – Lever Always Operable, No Cylinder)

  • ANSI Function: 14
  • Escutcheon plate size: 2-3/4″ x 9-3/4″ x 7/8″
  • DANE lever style furnished standard

Brand

Finishes

313AN Anodized Dark Bronze, US19 Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US32D (630) Satin Stainless Steel
Length

3'0" (2'8" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)
Hand

Device Non-Handed – Lever Ships as RHR (Field Reversible)
Trim

510L-BE
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Fire Rating

25R: Non-Fire-Rated – F25R: 3 Hour Fire-Rated
Usage

Heavy Duty
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Strike

299 roller strike standard, 299F strike with fire-rated device
Latchbolt

Stainless steel, 3/4" throw – Deadlocking
Fasteners

All mounting screws are concealed, sheet metal screws and machine screws standard
Projections

2-3/4" maximum, 2" dogged
Stile Type

Wide (Standard)
Minimum Stile Width

4" w/ Standard Roller Strike
Door Applications

1-3/4″ Thick Metal or Wood Doors
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
Falcon_25-R_F-25-R_Installation_Instructions Falcon 25 Series 510L Installation Instructions
