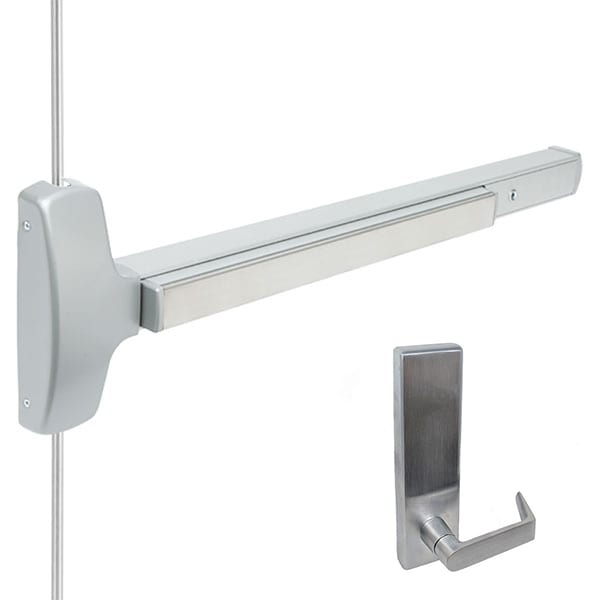

Falcon 25-V-L-BE Surface Vertical Rod Panic Bar Exit Device with Passage Lever

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI Grade-1, Made in USA
  • ANSI Function 14 (Lever Always Operable)
  • Includes 510L-BE Dane Lever

Available Options:

Product Overview

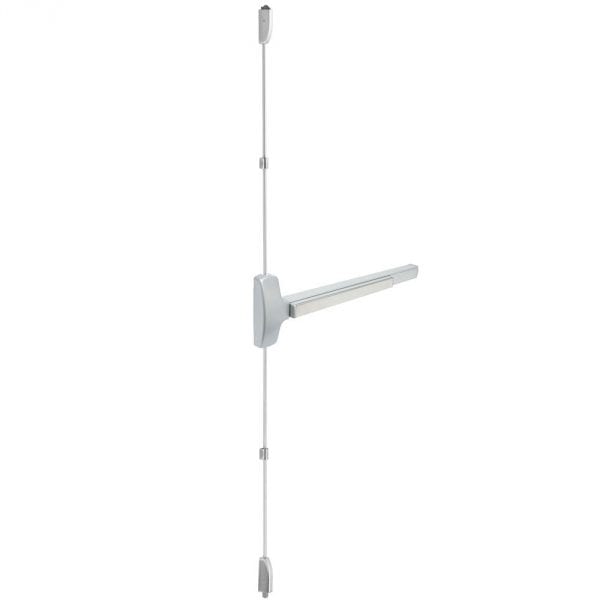

Falcon 25-V-L-BE 25 Series Exit Device, Surface Vertical Rod with Blank Escutcheon Trim, Dane Lever Design

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation. Offices, banks, assisted living facilities, retail stores, and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse. When your application requires strength and durability, plus fire-rated performance, the F-25-V Series is the total package.

No exposed screws or rivets on the back of the device for a streamlined design and clean lines – when installed on full glass doors.

  • Deadlocking top latch standard
  • All mounting screws are concealed, sheet metal screws and machine screws standard
  • 2-3/4″ maximum projection, 2″ dogged
  • Stock Sizes: 3′ x 7′ and 4′ x 7′

510L-BE Lever Trim (Passage – Lever Always Operable, No Cylinder)

  • ANSI Function: 14
  • Escutcheon plate size: 2-3/4″ x 9-3/4″ x 7/8″
  • DANE lever style furnished standard

Brand

Finishes

313AN Anodized Dark Bronze, US19 Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US32D (630) Satin Stainless Steel
Length

3'0" (2'8" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)
Trim

510L-BE
ANSI Function

F14
Handing

Easily Re-handed in the field – Shipped as RHR
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Usage

Heavy Duty
Fire Rating

25-V: Non-Rated – F-25-V: “A” Label (3 hr) – 8′ x 10′ Double Egress; 90 min. Same Egress – 8′ x 10′ Wood Door: 20 Min. 8′ x 10′; 90 Min. 8′ x 9′
Vertical Rods

Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (extension rod available for doors up to 10'0")
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Projections

2-3/4" maximum, 2" dogged
Latchbolt

Top Stainless Steel 3/4" throw. Bottom Bolt, 1/2" Throw
Strikes

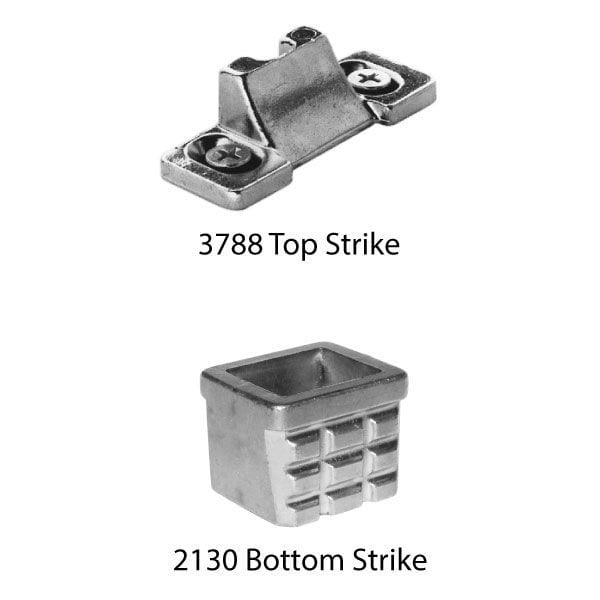

3788 Top Strike is Surface Applied – 2130 Bottom Strike is Mortised into Floor
Stile Type

Wide (Standard)
Minimum Stile Width

3-1/2"
Device Type

Surface Rod Device
Door Applications

1-3/4″ Thick Metal or Wood Doors
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
