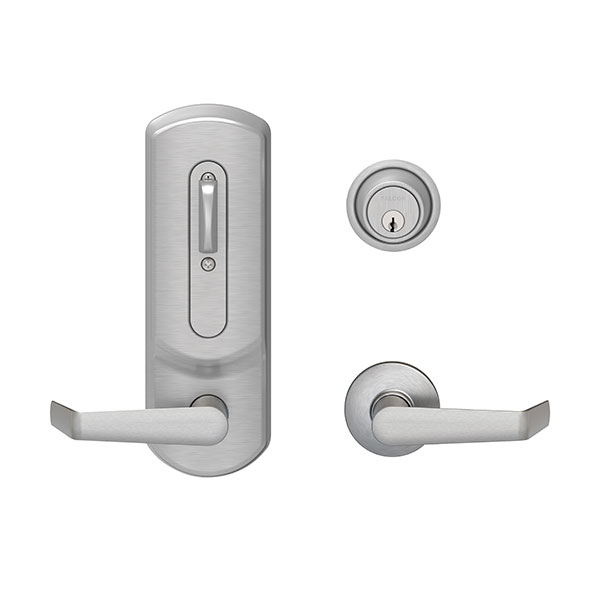

Falcon H2101P DAN Entry Single Locking Interconnected Lock, Dane Lever

Usually Ships: 20-30 Business Days
  • ANSI/BHMA Certified A156.12-2013, Grade 2

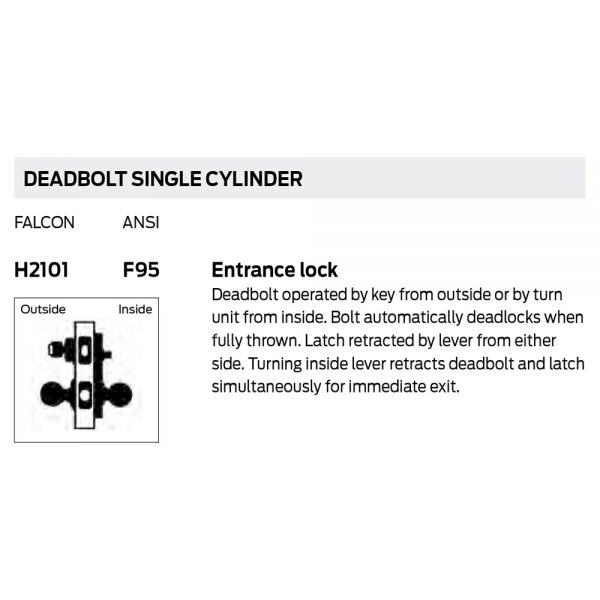

  • ANSI F95 function – entrance single locking
  • Provides a single-motion egress

Available Options:

Product Overview

Falcon H2101P DAN Entrance Single Locking Interconnected Lock – Grade-2, ANSI F95, 4″ or 5-1/2″ CTC Length, Dane Lever, Plymouth Escutcheon, 2-3/8″ or 2-3/4″Adjustable Backset

The H2 Series interconnected locks provide a single-motion egress and are ideal for multi-family, mixed-use and public restroom applications. The H2 Series features a single-motion egress (retracting both the latch and deadbolt simply by rotating the inside lever) to meet Life and Safety code requirements, while exceeding BHMA Grade 2 requirements for operational usage, security, cycle and finish.

  • Large inner plate that connects lock and deadbolt
  • Exterior has the appearance of a tubular lock and deadbolt
  • 1-3⁄4″ – 2″ door range standard
  • UL: listed 1-1/2 Hour B Label
  • 10-year limited warranty
Brand

Finishes

605 Bright Brass, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze
Keyway

Falcon G Keyway, Schlage C Keyway
Lock Function

Single Locking Entry
Lever Design

DAN (Dane)
Escutcheon Design

PLY (Plymouth)
Backset

2-3/8" to 2-3/4" Adjustable
Latch

1" x 2-1/4" dual option faceplate (square corner standard, round corner included in package). 1" edge bore required
Deadbolt

1 x 2-1/4", dual option faceplate, (square corner standard, round corner included in package), 1" housing diameter, 1" throw
Strike

1-1/8" x 2-3/4", Square corner (deadbolt) and 1-5/8" x 2-1/4", Square corner, full lip, no box
Usage

Medium Duty
ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2, Grade 2
ANSI Function

F95
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Handed – Field Reversible
Door Thickness

1-3/4" to 2"
