Falcon K101S QUANTUM Heavy Duty Passage Lever

$130.48

Usually Ships: 1-2 Business Days
  • Heavy Duty – Grade 1 – 626 Finish
  • Passage – Both Sides Always Unlocked
  • ADA Compliant – 3 Hour Fire-Rated

Product Overview

High traffic, high abuse door openings demand a Grade 1 quality lock to keep doors secure. When quality and reliability are needed but cost is a concern, the certified ANSI/BHMA Grade 1 Falcon K Series can do the job. The Falcon K Series offers a quality product at a value price, and is backed by one of the best names in the business – Allegion.

ANSI Function F75 – Latch bolt by levers at all times.

  • 626 Satin Chrome Finish
  • Four through bolts for added strength
  • Lever security caps to help prevent undesired lever removal and lever sag after continual use
  • Manufactured to Allegion’s industry-leading quality standards
Brand

Lock Function

Passage
Usage

Heavy Duty
Finishes

626 Satin Chrome
ANSI/BHMA Standard

Meets ANSI/BHMA A156.2, Series 4000, Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
Handing

Non-Handed
Door Thickness

1-3/4" to 2-1/4"
Backset

2-3/4"
Latch

1/2" throw – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Warranty

10 Years
Screws

Furnished with combination screws for use in wood or metal doors and frames.

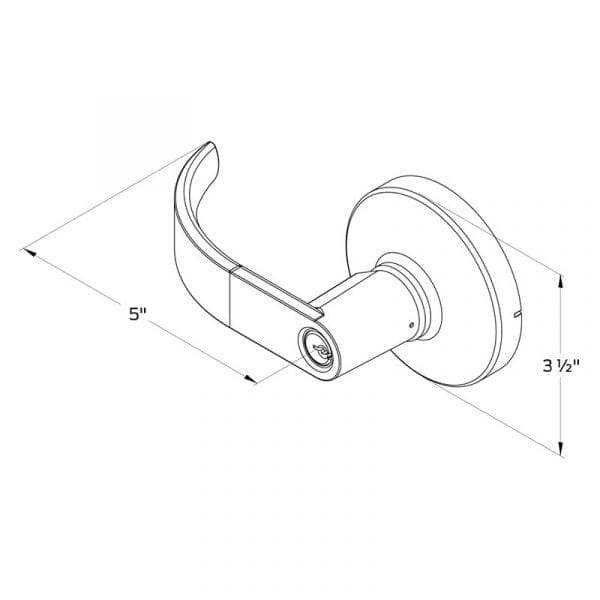

Lever Design

Q (Quantum)
Falcon_K_Installation_Instructions
