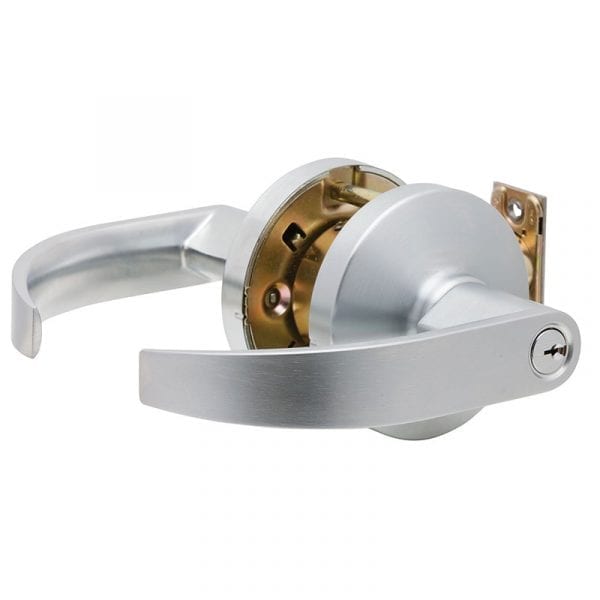

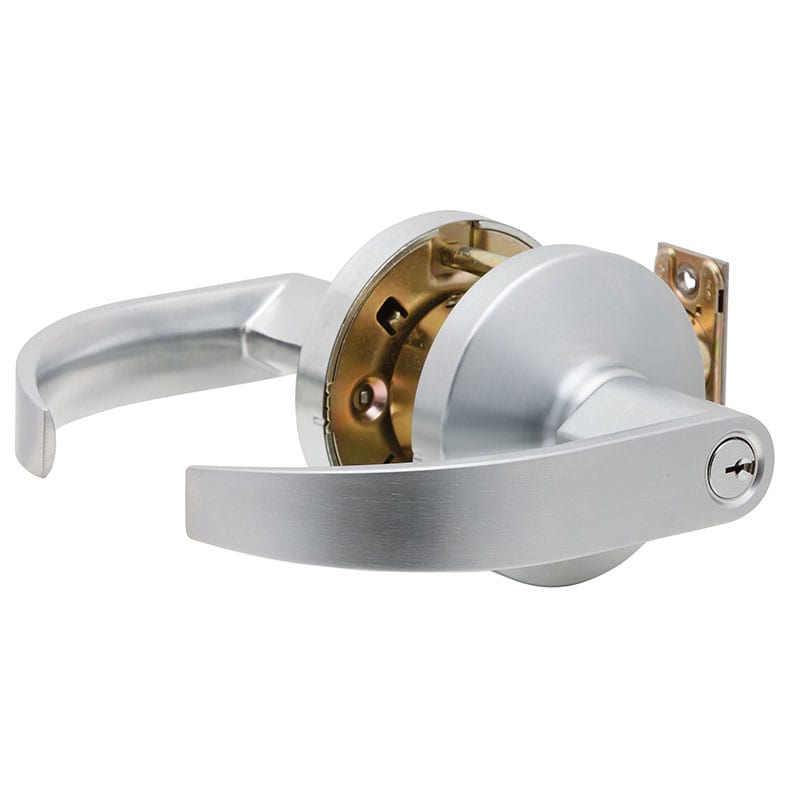

Falcon K581CPD QUANTUM Heavy Duty Storeroom Lever Lock

$159.38

Usually Ships: 1-2 Business Days
  • Heavy Duty – Grade 1 – 626 Finish
  • Outside Always Locked – Entry by Key Only
  • ADA Compliant – 3 Hour Fire-Rated

Product Overview

High traffic, high abuse door openings demand a Grade 1 quality lock to keep doors secure. When quality and reliability are needed but cost is a concern, the certified ANSI/BHMA Grade 1 Falcon K Series can do the job. The Falcon K Series offers a quality product at a value price, and is backed by one of the best names in the business – Allegion.

ANSI Function F86 – Deadlocking latch bolt by lever inside or key outside. Outside lever is inoperable. Inside lever always free.

  • 626 Satin Chrome Finish
  • Clutching lever design allows the lever to move when locked without unlatching the door, preventing damage to the chassis
  • Four through bolts for added strength, providing high security and peace of mind
  • Lever security caps to help prevent undesired lever removal and lever sag after continual use
  • Manufactured to Allegion’s industry-leading quality standards
Brand

Lock Function

Storeroom
Usage

Heavy Duty
ANSI/BHMA Standard

Meets ANSI/BHMA A156.2, Series 4000, Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
Keyway

Schlage C Keyway
Handing

Non-Handed
Door Thickness

1-3/4" to 2-1/4"
Backset

2-3/4"
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Clutch Lever

Yes
Screws

Furnished with combination screws for use in wood or metal doors and frames.

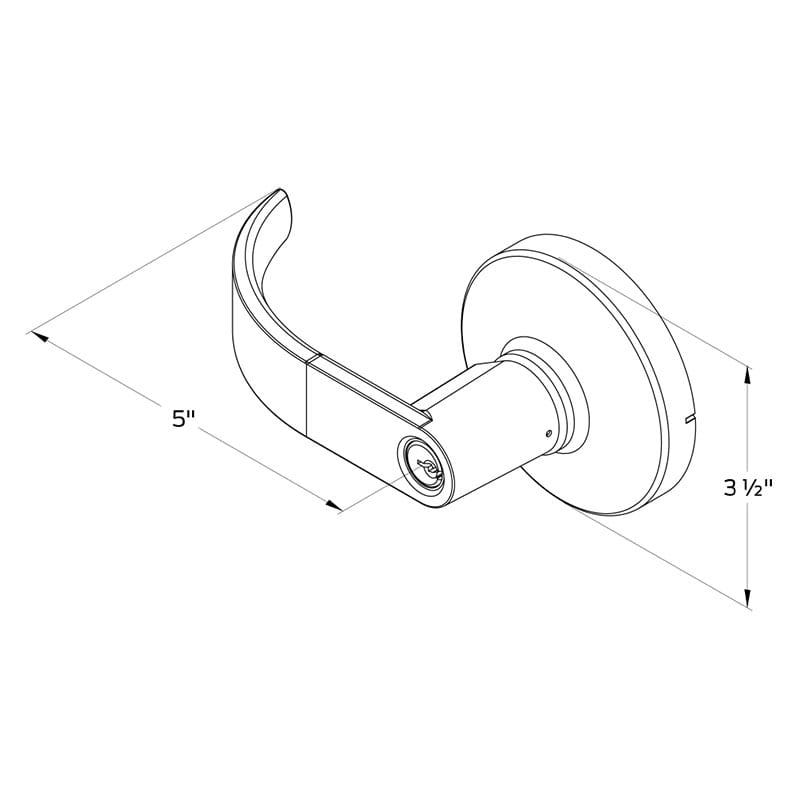

Lever Design

Q (Quantum)
Warranty

10 Years
Finishes

626 Satin Chrome
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Falcon_K_Installation_Instructions
