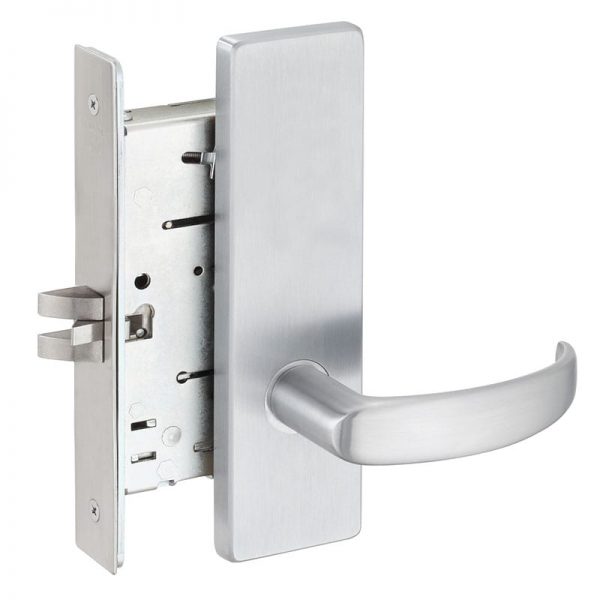

Falcon MA101 QN Passage Mortise Set, Quantum Lever, Napa Escutcheon

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI Grade-1 Certified
  • ANSI Function: F01 – Passage
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Product Overview

Falcon MA101 QN Passage Mortise Lock, Quantum Lever, Napa Escutcheon

The MA Series is a heavy-duty, Grade 1 mortise lock that offers versatility, toughness, and dependability at an affordable price.

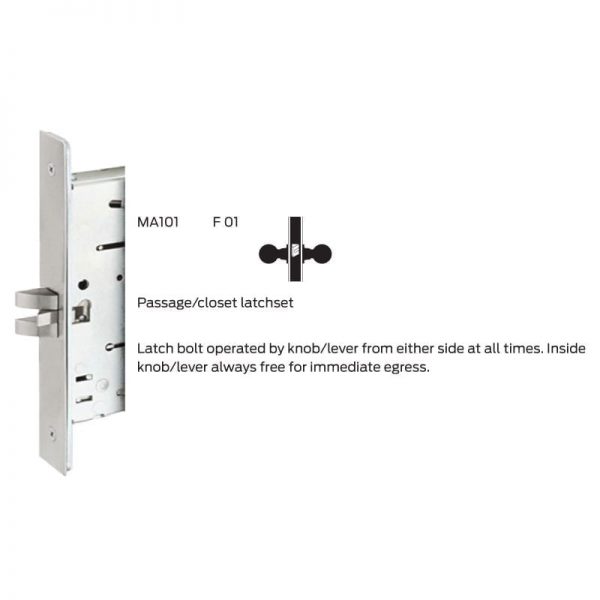

ANSI F01 – Passage – Latch bolt operated by lever from either side at all times.

  • Forged escutcheons for added strength (8-1/8″H x 2-1/4″W)
  • UL listed and certified Operational Grade 1 and Security Grade
  • Cold-formed steel, zinc plated with dichromate for corrosion resistance
  • Ability to easily re-hand the lock in the field

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 630 Satin Stainless Steel
Lock Function

Passage
Usage

Heavy Duty
ANSI Function

F01
ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Case

Cold formed steel, zinc dichromate plated, .090” thick
Latchbolt

Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection
Faceplate

(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs
Strike

Meets ANSI AII5.1 for frame preparation. Strike is non-handed
Door Thickness

1-3/4"
Lever Design

QN Quantum Napa
Falcon_MA-Lock_Installation_Instructions Falcon_MA_Series_Service_Manual
