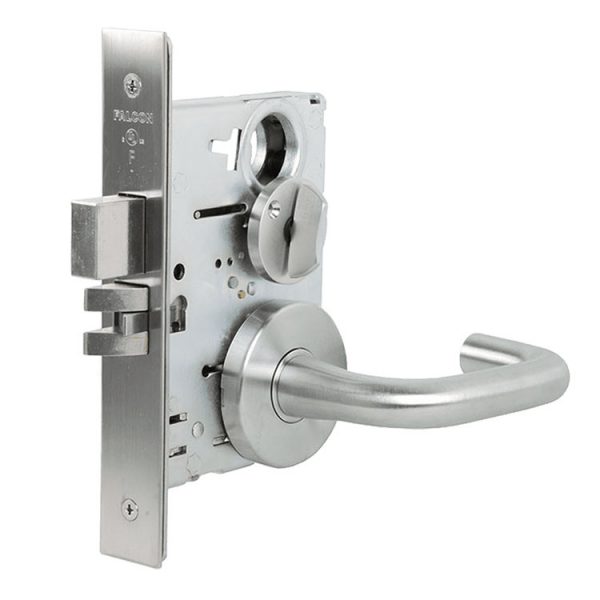

Falcon MA321 SG Privacy Mortise Lock with No Entry Lockout, Sutro Lever, Gala Rose

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI Grade-1 Certified
  • ANSI Function: F22 – Privacy
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Product Overview

Falcon MA321 SG Privacy Mortise Lock with No Entry Lockout, Sutro Lever, Gala Rose

The MA Series is a heavy-duty, Grade 1 mortise lock that offers versatility, toughness, and dependability at an affordable price.

ANSI F22 – Privacy Mortise Lock – Latch bolt operated by knob/lever from either side except when outside knob/lever is locked by inside turn. Operating inside knob/lever, closing door or operating outside emergency release unlocks outside knob/lever. Inside knob/lever always free for immediate egress.

  • UL listed and certified Operational Grade 1 and Security Grade
  • Cold-formed steel, zinc plated with dichromate for corrosion resistance
  • Ability to easily re-hand the lock in the field

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 625 Bright Chrome, 626 Satin Chrome, 630 Satin Stainless Steel
Usage

Heavy Duty
Lever Design

SG Sutro Gala
Lock Function

Privacy
ANSI Function

F22
ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Case

Cold formed steel, zinc dichromate plated, .090” thick
Latchbolt

Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection
Deadbolt

1" throw, stainless steel with two 13/16" diameter hardened steel, free-turning, saw-resistant roller.
Faceplate

(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs
Strike

Meets ANSI AII5.1 for frame preparation. Strike is non-handed
Door Thickness

1-3/4"
Falcon_MA-Lock_Installation_Instructions Falcon_MA_Series_Service_Manual
