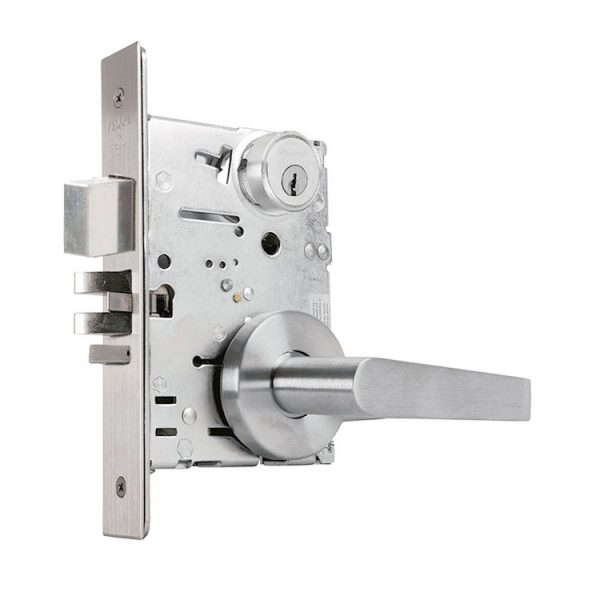

Falcon MA371 DG Store Door Mortise Lock, Dane Lever, Gala Rose

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI Grade-1 Certified
  • ANSI Function: F14 – Store Door (key on both sides)
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Product Overview

Falcon MA371 DG Store Door Mortise Lock, Dane Lever, Gala Rose

The MA Series is a heavy-duty, Grade 1 mortise lock that offers versatility, toughness, and dependability at an affordable price.

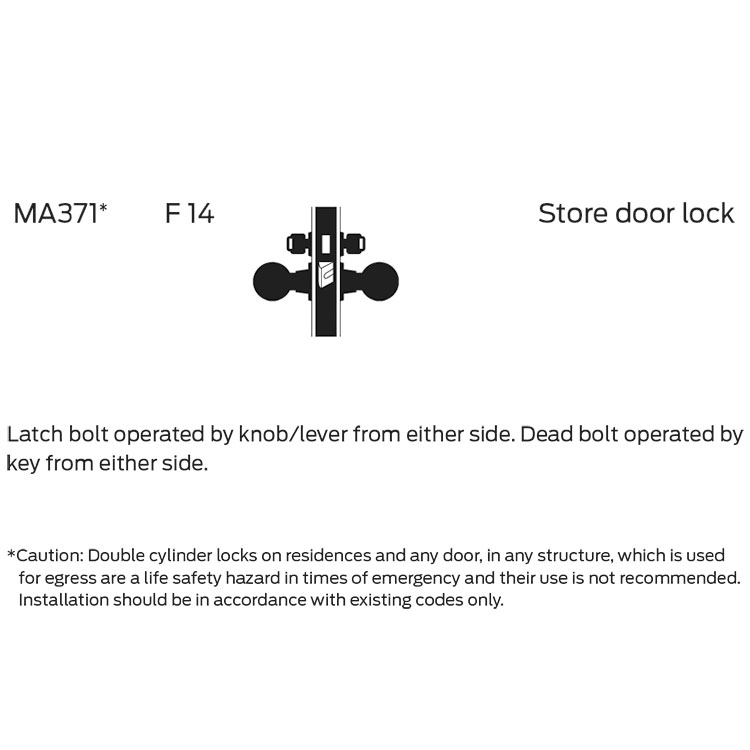

ANSI F14 – Store Door Lock: Latch bolt operated by knob/lever from either side. Dead bolt operated by key from either side.

Caution: Double cylinder locks on residences and any door, in any structure, which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

  • UL listed and certified Operational Grade 1 and Security Grade
  • Cold-formed steel, zinc plated with dichromate for corrosion resistance
  • Ability to easily re-hand the lock in the field
  • Requires two cylinders
  • Conventional cylinders or (SFIC) small format interchangeable core housings (less core)

Models: MA371P-DG-605, MA371CP6-DG-605, MA371B-DG-605, MA371L-DG-605, MA371P-DG-606, MA371CP6-DG-606, MA371B-DG-606, MA371L-DG-606, MA371P-DG-613, MA371CP6-DG-613, MA371B-DG-613, MA371L-DG-613, MA371P-DG-622, MA371CP6-DG-622, MA371B-DG-622, MA371L-DG-622, MA371P-DG-626, MA371CP6-DG-626, MA371B-DG-626, MA371L-DG-626, MA371P-DG-630, MA371CP6-DG-630, MA371B-DG-630, MA371L-DG-630

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome, 630 Satin Stainless Steel
Lock Function

Store
Cylinders

Requires 2: 985-6Pin Mortise Cylinder or 987 Mortise Cylinder Housing
Usage

Heavy Duty
ANSI Function

F14
ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Case

Cold formed steel, zinc dichromate plated, .090” thick
Latchbolt

Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection
Faceplate

(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs
Strike

Meets ANSI AII5.1 for frame preparation. Strike is non-handed
Door Thickness

1-3/4"
Lever Design

DG Dane Gala
