Falcon MA381 DG Apartment Exit Mortise Lock, Dane Lever, Gala Rose

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI Grade-1 Certified
  • ANSI Function: F09 – Apartment Exit Lock
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Product Overview

Falcon MA381 DG Apartment Exit Mortise Lock, Dane Lever, Gala Rose

The MA Series is a heavy-duty, Grade 1 mortise lock that offers versatility, toughness, and dependability at an affordable price.

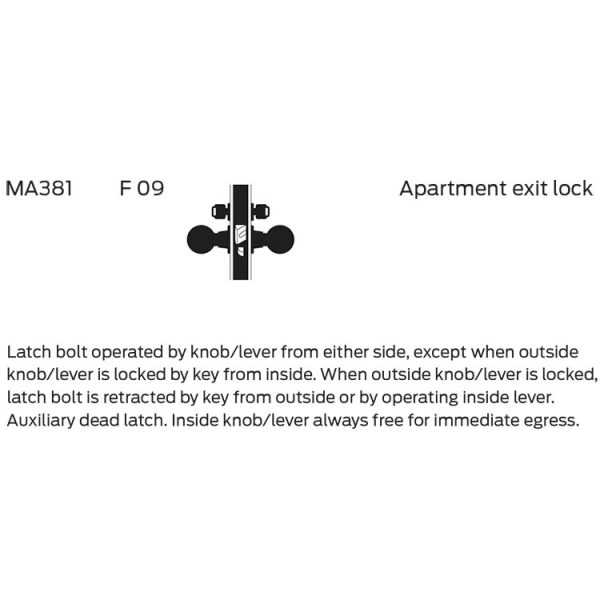

ANSI F09 – Apartment exit lock: Latch bolt operated by knob/lever from either side, except when outside knob/lever is locked by key from inside. When outside knob/lever is locked, latch bolt is retracted by key from outside or by operating inside lever. Auxiliary dead latch. Inside knob/lever always free for immediate egress.

  • UL listed and certified Operational Grade 1 and Security Grade
  • Cold-formed steel, zinc plated with dichromate for corrosion resistance
  • Requires two cylinders
  • Conventional cylinders or (SFIC) small format interchangeable core housings (less core)

Models: MA381P-DG-626, MA381CP6-DG-626, MA381B-DG-626, MA381P-DG-630, MA381CP6-DG-630, MA381B-DG-630

codes

Brand

Finishes

626 Satin Chrome, 630 Satin Stainless Steel
Cylinders

Requires 2: 985-6Pin Mortise Cylinder or 987 Mortise Cylinder Housing
Lever Design

DG Dane Gala
Lock Function

Apartment Exit
ANSI Function

F09
Usage

Heavy Duty
ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
Handing

Handed – LH, RH
Backset

2-3/4"
Case

Cold formed steel, zinc dichromate plated, .090” thick
Latchbolt

Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection
Faceplate

(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs
Strike

Meets ANSI AII5.1 for frame preparation. Strike is non-handed
Door Thickness

1-3/4"
