Falcon MA451 DG Hotel Guest Mortise Lock, Dane Lever, Gala Rose

Usually Ships: 1-2 Business Days

Heavy-Duty, ANSI Grade-1 Certified
ANSI Function: F15 – Hotel Guest Lock
ADA Compliant, 3 Hour Fire-Rated

Available Options:

Finish

Cylinder

Clear

Quantity:

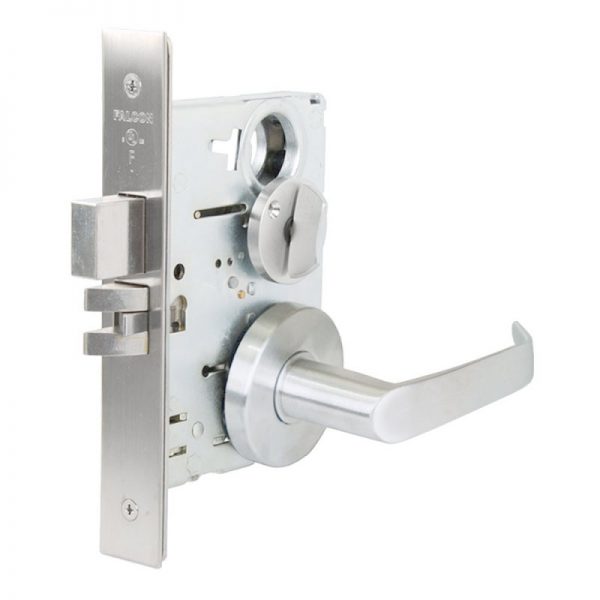

Falcon MA451 DG Hotel Guest Mortise Lock, Dane Lever, Gala Rose

The MA Series is a heavy-duty, Grade 1 mortise lock that offers versatility, toughness, and dependability at an affordable price.

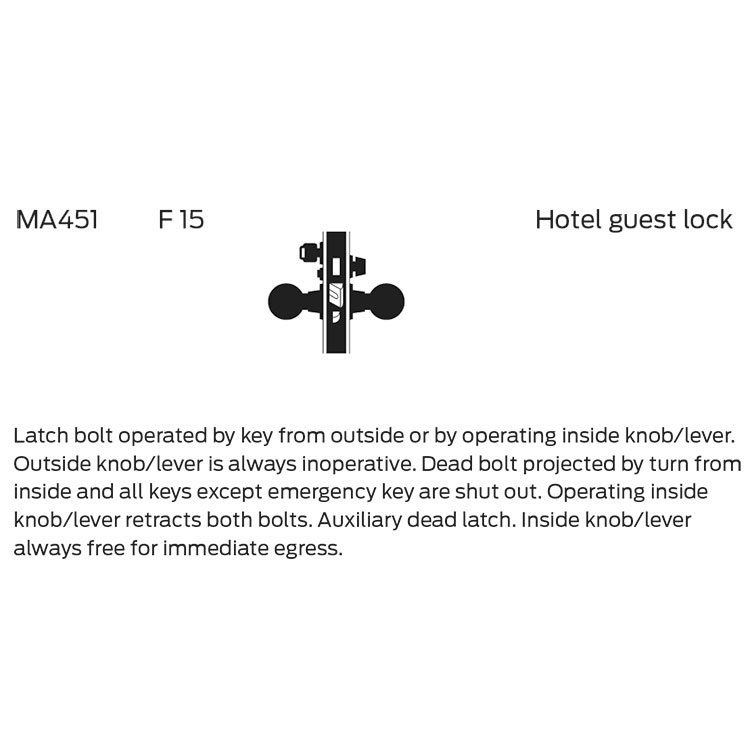

ANSI F15 – Hotel Guest Lock: Latch bolt operated by key from outside or by operating inside knob/lever. Outside knob/lever is always inoperative. Dead bolt projected by turn from inside and all keys except emergency key are shut out. Operating inside knob/lever retracts both bolts. Auxiliary dead latch. Inside knob/lever always free for immediate egress.

UL listed and certified Operational Grade 1 and Security Grade
Cold-formed steel, zinc plated with dichromate for corrosion resistance
Ability to easily re-hand the lock in the field
Conventional cylinder or (SFIC) small format interchangeable core housing (less core)

Models: MA451P-DG-605, MA451CP6-DG-605, MA451B-DG-605, MA451L-DG-605, MA451P-DG-606, MA451CP6-DG-606, MA451B-DG-606, MA451L-DG-606, MA451P-DG-613, MA451CP6-DG-613, MA451B-DG-613, MA451L-DG-613, MA451P-DG-622, MA451CP6-DG-622, MA451B-DG-622, MA451L-DG-622, MA451P-DG-626, MA451CP6-DG-626, MA451B-DG-626, MA451L-DG-626, MA451P-DG-630, MA451CP6-DG-630, MA451B-DG-630, MA451L-DG-630

Brand	Falcon
Finishes	605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome, 630 Satin Stainless Steel
Lock Function	Hotel Guest
Cylinder	985-6Pin Mortise Cylinder or 987 Mortise Cylinder Housing
ANSI Function	F15
Usage	Heavy Duty
ANSI Grade	ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
Fire Rating	“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
Handing	Right hand is standard; Reversible in the field
Backset	2-3/4"
Case	Cold formed steel, zinc dichromate plated, .090” thick
Latchbolt	Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection
Faceplate	(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs
Strike	Meets ANSI AII5.1 for frame preparation. Strike is non-handed
Door Thickness	1-3/4"

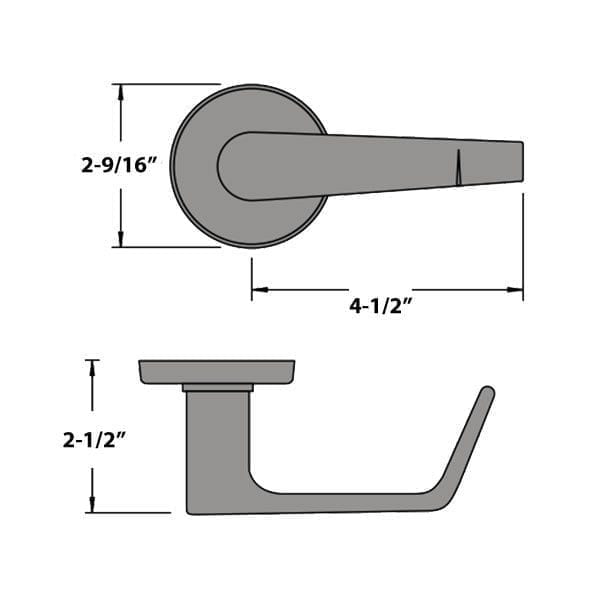

Lever Design	DG Dane Gala
