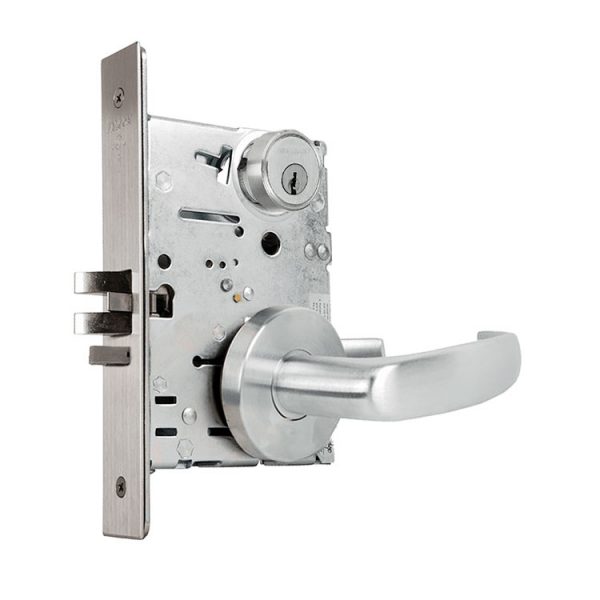

Falcon MA561 QG Classroom Mortise Lock, Quantum Lever, Gala Rose

Usually Ships: 1-2 Business Days

Heavy-Duty, ANSI Grade-1 Certified
ANSI Function: F05 – Classroom
ADA Compliant, 3 Hour Fire-Rated

Available Options:

Finish

Cylinder

Clear

Quantity:

Falcon MA561 QG Classroom Mortise Lock, Quantum Lever, Gala Rose

The MA Series lock delivers high performance at an affordable cost in an office, hospital, education, or other commercial projects. It provides security and is built to stand up to constant use without fail. The MA Series is one of Falcon’s toughest, most dependable locks.

ANSI F05 – Classroom: Latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is retracted by key from outside, or by operating inside lever. Auxiliary dead latch deadlocks latchbolt when door is closed. Inside lever always free for immediate exit.

UL listed and certified Operational Grade 1 and Security Grade
Cold-formed steel, zinc plated with dichromate for corrosion resistance
Ability to easily re-hand the lock in the field
Conventional cylinder or (SFIC) small format interchangeable core housing (less core)

Models: MA561P-QG-605, MA561CP6-QG-605, MA561B-QG-605, MA561L-QG-605, MA561P-QG-606, MA561CP6-QG-606, MA561B-QG-606, MA561L-QG-606, MA561P-QG-613, MA561CP6-QG-613, MA561B-QG-613, MA561L-QG-613, MA561P-QG-622, MA561CP6-QG-622, MA561B-QG-622, MA561L-QG-622, MA561L-QG-625, MA561P-QG-626, MA561CP6-QG-626, MA561B-QG-626, MA561L-QG-626, MA561P-QG-630, MA561CP6-QG-630, MA561B-QG-630, MA561L-QG-630

Brand	Falcon
Finishes	605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome, 630 Satin Stainless Steel
Cylinder	985 Mortise Cylinder (Falcon G Keyway), 985 Mortise Cylinder (Schlage C Keyway), 987 SFIC Mortise Cylinder Housing (Less Core), Less Cylinder (no cylinder)
Lock Function	Classroom
Lever Design	QG Quantum Gala
Usage	Heavy Duty
ANSI Function	F05
ANSI Grade	ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
Fire Rating	“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
Handing	Right hand is standard; Reversible in the field
Backset	2-3/4"
Case	Cold formed steel, zinc dichromate plated, .090” thick
Latchbolt	Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection
Faceplate	(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs
Strike	Meets ANSI AII5.1 for frame preparation. Strike is non-handed
Door Thickness	1-3/4"
