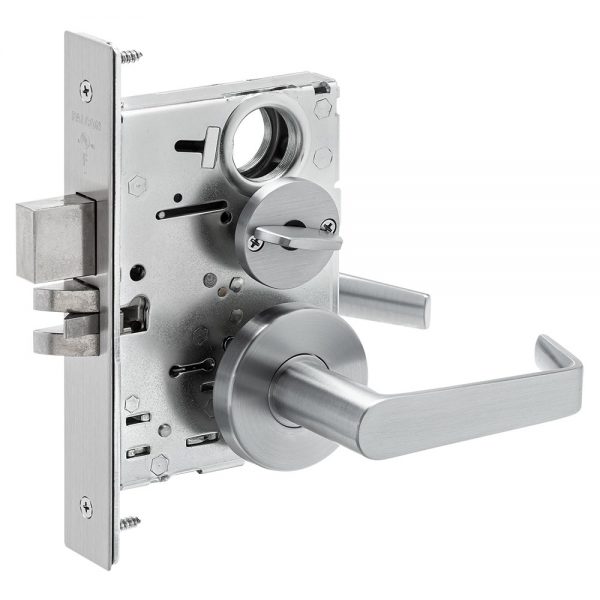

Falcon MA571 DG Dormitory/Exit Mortise Lock, Dane Lever, Gala Rose

Usually Ships: 1-2 Business Days

Heavy-Duty, ANSI Grade-1 Certified
ANSI Function: F13 – Dormitory or Exit Lock
ADA Compliant, 3 Hour Fire-Rated

Available Options:

Finish

Cylinder

Clear

Quantity:

Falcon MA571 DG Dormitory/Exit Mortise Lock, Dane Lever, Gala Rose

The MA Series is a heavy-duty, Grade 1 mortise lock that offers versatility, toughness, and dependability at an affordable price.

ANSI F13 – Dormitory or Exit Lock: Latch bolt operated by lever from either side. Deadbolt projected by key from outside and turn from inside. Operating inside lever retracts both bolts and unlocks outside. Inside lever always free for immediate egress

UL listed and certified Operational Grade 1 and Security Grade
Cold-formed steel, zinc plated with dichromate for corrosion resistance
Ability to easily re-hand the lock in the field
Conventional cylinder or (SFIC) small format interchangeable core housing (less core)

Models: MA571P-DG-605, MA571CP6-DG-605, MA571B-DG-605, MA571L-DG-605, MA571P-DG-606, MA571CP6-DG-606, MA571B-DG-606, MA571L-DG-606, MA571P-DG-613, MA571CP6-DG-613, MA571B-DG-613, MA571L-DG-613, MA571P-DG-622, MA571CP6-DG-622, MA571B-DG-622, MA571L-DG-622, MA571P-DG-626, MA571CP6-DG-626, MA571B-DG-626, MA571L-DG-626, MA571P-DG-630, MA571CP6-DG-630, MA571B-DG-630, MA571L-DG-630

Brand	Falcon
Finishes	605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome, 630 Satin Stainless Steel
Lock Function	Dormitory
Cylinder	985-6Pin Mortise Cylinder or 987 Mortise Cylinder Housing
ANSI Function	F13
Usage	Heavy Duty
ANSI Grade	ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
Fire Rating	“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
Handing	Right hand is standard; Reversible in the field
Backset	2-3/4"
Case	Cold formed steel, zinc dichromate plated, .090” thick
Latchbolt	Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection
Faceplate	(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs
Strike	Meets ANSI AII5.1 for frame preparation. Strike is non-handed
Door Thickness	1-3/4"
Lever Design	DG Dane Gala
