Falcon MA581 LTG Storeroom Mortise Lock, Latitude Lever, Gala Rose

Usually Ships: 20-30 Business Days
  • Heavy-Duty, ANSI Grade-1 Certified
  • ANSI Function: F07 – Storeroom
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Product Overview

Falcon MA581 LTG Storeroom Mortise Lock, Latitude Lever, Gala Rose

The MA Series lock delivers high performance at an affordable cost in an office, hospital, education, or other commercial projects. It provides security and is built to stand up to constant use without fail. The MA Series is one of Falcon’s toughest, most dependable locks.

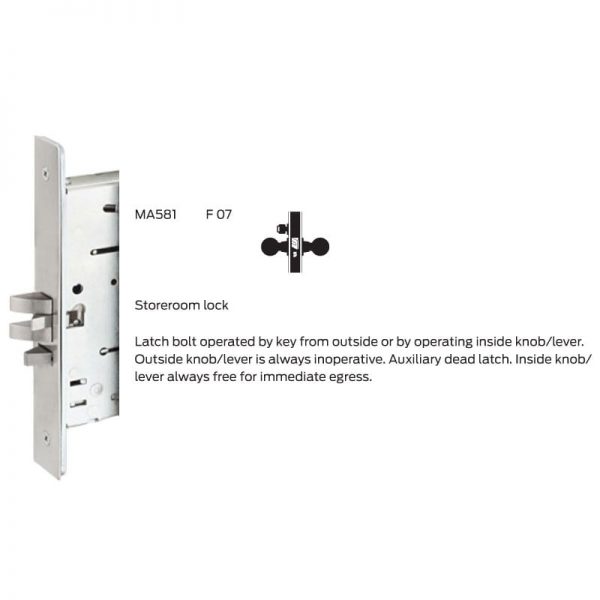

ANSI F07 – Storeroom: Latch bolt operated by key from outside or by operating inside lever. Outside lever is always inoperative. Auxiliary deadlatch.

  • UL listed and certified Operational Grade 1 and Security Grade
  • Cold-formed steel, zinc plated with dichromate for corrosion resistance
  • Ability to easily re-hand the lock in the field
  • Conventional cylinder or (SFIC) small format interchangeable core housing (less core)

Models: MA581P-LTG-605, MA581CP6-LTG-605, MA581D-LTG-605, MA581L-LTG-605, MA581P-LTG-606, MA581CP6-LTG-606, MA581D-LTG-606, MA581L-LTG-606, MA581P-LTG-613, MA581CP6-LTG-613, MA581D-LTG-613, MA581L-LTG-613, MA581P-LTG-622, MA581CP6-LTG-622, MA581D-LTG-622, MA581L-LTG-622, MA581P-LTG-626, MA581CP6-LTG-626, MA581D-LTG-626, MA581L-LTG-626

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome
Cylinder

985 Mortise Cylinder (Falcon G Keyway), 985 Mortise Cylinder (Schlage C Keyway), 987 SFIC Mortise Cylinder Housing (Less Core), Less Cylinder (no cylinder)
Lever Design

LTG Latitude Gala
Lock Function

Storeroom
ANSI Function

F07
Usage

Heavy Duty
ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Case

Cold formed steel, zinc dichromate plated, .090” thick
Latchbolt

Two-piece stainless steel, mechanical anti-friction bolt. 3 ⁄ 4 " projection
Faceplate

(armored front) 1 1 ⁄ 4 " x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs
Strike

Meets ANSI AII5.1 for frame preparation. Strike is non-handed
Door Thickness

1-3/4"
Falcon_MA-Lock_Installation_Instructions Falcon_MA_Series_Service_Manual
