Falcon SC71A Hw/PA Door Closer w/ Hold Open Arm

Usually Ships: 1-2 Business Days
  • Heavy Duty – ANSI/BHMA A156.4, Grade 1
  • Includes Hold Open Arm
  • Regular, Top Jamb or Parallel Arm Mount

Available Options:

Product Overview

Falcon SC71A HWPA, SC70 Series Heavy Duty Closer, Hold Open Arm with PA Bracket, Full Cover

Falcon SC70 Series heavy-duty closers are built for applications that demand reliable door control and easy maintenance. The SC70 Series closers are ANSI Grade 1, ADA compliant, and deliver tough performance at an unbeatable value. Choose the SC71A for interior or exterior doors in retail shops, restaurants, apartments, small offices, and a variety of other high-traffic applications.

  • Separate adjustable general speed, latch speed and backcheck
  • Comes standard with universal screw pack, including self reaming and tapping screws

Hw/PA – Hold Open Arm with Parallel Arm Bracket. Includes adjustable forearm assembly to accommodate a variety of door types and frame conditions. Parallel Arm (PA) bracket allows closer to be installed on the ‘push’ side of the door in a parallel arm type configuration. Hold open function adjustable at the arm shoe.

Finishes:

  • AL, BHMA 689 – Silver Painted (Resembles Aluminum Finish)
  • DKB, BHMA 695 – Dark Bronze Painted (Spray Duranodic)
  • MTBK, BHMA 622 – Matte Black
  • BR, BHMA 696 – Brass

Models: SC71A-HWPA-AL, SC71A-HWPA-DKB, SC71A-HWPA-MTBK, SC71A-HWPA-BR

Brand

Finishes

622 Matte Black, 689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated), 696 Brass (Powder Coated)

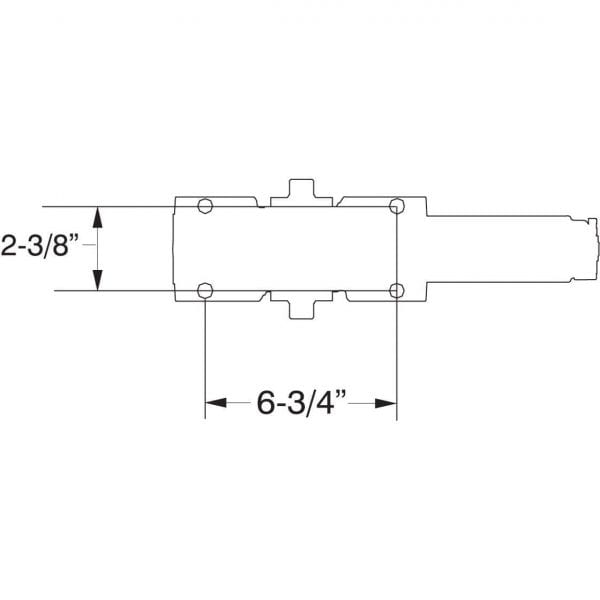

Templating (Hole Pattern)

2-3/8" x 6-3/4"
Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)
ANSI/BHMA Standard

Tested and certified under ANSI Standard A156.4 – Grade-1
Usage

Heavy Duty
Body Construction

Cast Aluminum Body
Spring Size

Adjustable Spring Size 1-6
Handing

Non-Handed
Fire Rating

None
Cover

Full Cover
Door Application

Hollow Metal or Wood
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
