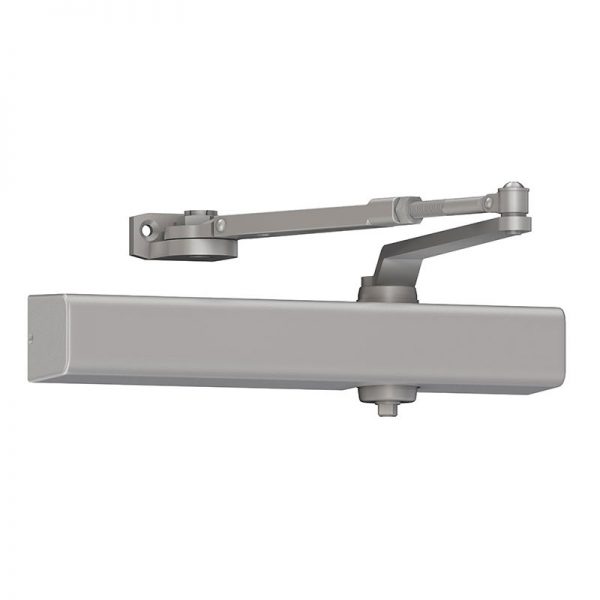

Falcon SC81A Hw/PA Door Closer with Hold Open Arm

Falcon SC81A HWPA, SC80 Series Medium Duty Closer, Hold Open Arm with PA Bracket

The Falcon SC81A provides a solid product at a solid price and is perfect for virtually all medium-duty commercial applications. The SC81A closer brings Grade-1 durability and reliability to both interior and exterior doors. An adjustable design ensures flexible installation and ADA compliance. Ideal for side doors, closets, restrooms, retail shops, restaurants, and office buildings.

• Separate adjustable general speed, latch speed and backcheck
• Adjustable Sizes 1-6 – for interior doors to 5’0″ wide and exterior doors to 4’0″ wide

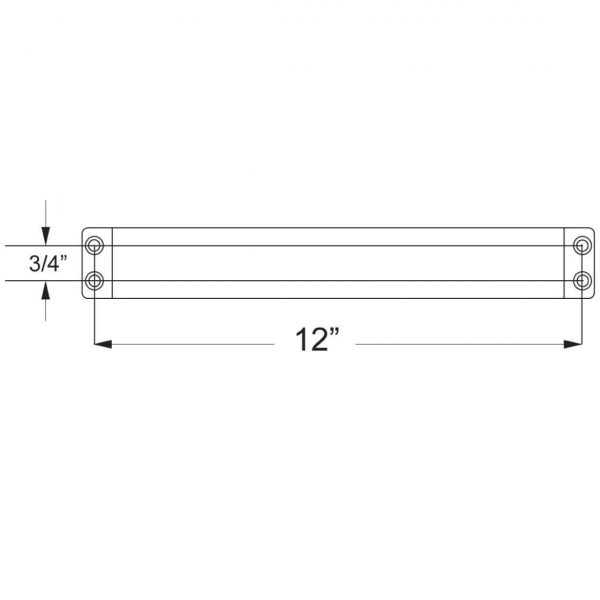

• Common 3/4″ x 12″ Mounting Hole Pattern – Retrofittable to Norton 8000

Hw/PA – Hold Open Arm with Parallel Arm Bracket. Includes adjustable forearm assembly to accommodate a variety of door types and frame conditions. Parallel Arm (PA) bracket allows closer to be installed on the ‘push’ side of the door in a parallel arm type configuration. Hold open function adjustable at the arm shoe.

Finishes:

• AL, BHMA 689 – Silver Painted (Resembles Aluminum Finish)
• BR, BHMA 696 – Brass Painted
• DKB, BHMA 695 – Dark Bronze Painted (Spray Duranodic)
• MTBK, BHMA 622 – Matte Black

Models: SC81A-HWPA-AL, SC81A-HWPA-BR, SC81A-HWPA-DKB, SC81A-HWPA-MTBK, SC81A-HWPA-AL-FC, SC81A-HWPA-DKB-FC, SC81A-HWPA-MTBK-FC
