Falcon T301S DANE Extra Heavy Duty Privacy Lever Lock

Usually Ships: 1-2 Business Days
  • Extra Heavy Duty, ANSI Grade 1 Certified
  • Bath/Privacy Function, Push Button Locking
  • ADA Compliant, 3-Hour Fire-Rated

Available Options:

Product Overview

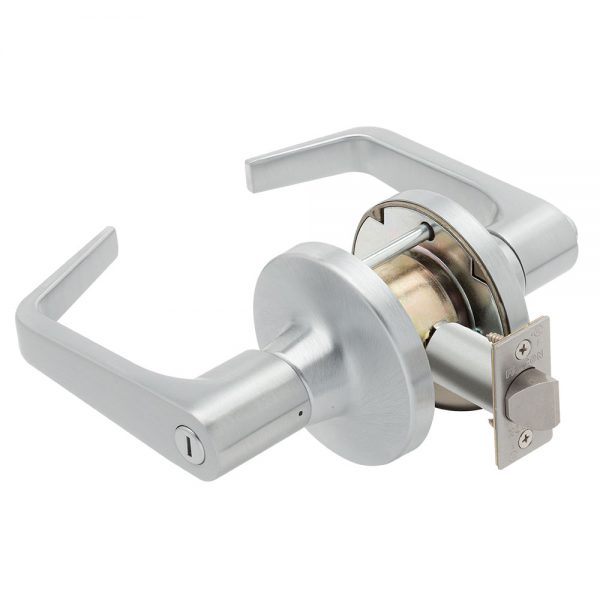

Falcon T301S Grade 1 Privacy Cylindrical Lock, Non-keyed, Dane Lever, Standard Rose

The T Series extra heavy-duty Grade 1 cylindrical lock is designed to stand up to high-traffic and heavy-abuse applications. The T Series is constructed with a compression spring that allows the lock to exceed ANSI/BHMA Grade 1 testing requirements. Perfect for high-use institutional applications, the T Series lock delivers by providing a solid product at a solid price.

ANSI Function F76 – Latch bolt by levers. Outside lever locked by push button in inside lever. Rotating inside lever or closing door releases push button. Emergency release in outside lever unlocks door.

Reliability

  • Heavy-duty compression springs behind the rose provide consistent lever return and prevent lever sag
  • Trim is through-bolted with two 10-32 screws coated with thread sealant
  • Certified Grade 1 and UL10C 3-hour A label
  • Lever designs exceed ADA and state disability requirements

Compatibility

  • Adjustable door thickness from 1-3/4” to 2-1/8” to fit all common door thicknesses
  • Non-handed design
  • Does not require field disassembly for re-handing
Brand

Finishes

606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome
ANSI/BHMA Standard

Meets ANSI/BHMA A156.2, Series 4000, Grade 1
Usage

Heavy Duty
Lock Function

Privacy
Lever Design

D (Dane)
Handing

Non-Handed
Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Backset

2-3/4"
Latch

1/2" throw – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
