Falcon T511BD DANE Extra Heavy Duty Entry/Office Lever Lock, SFIC Prep, Less Core

Usually Ships: 1-2 Business Days
  • Extra Heavy Duty, ANSI Grade 1 Certified
  • ANSI F109 Function, Entry/Office
  • Prepped for SFIC Core (Core Sold Separately)

Available Options:

Product Overview

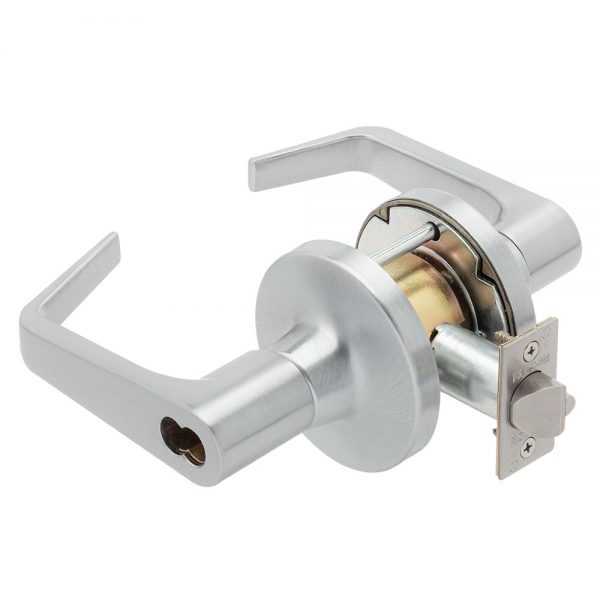

Falcon T511BD D 626 Grade 1 Entry/Office Cylindrical Lock, SFIC Prep Less Core, Dane Lever, Standard Rose, Satin Chrome Finish

The T Series extra heavy-duty Grade 1 cylindrical lock is designed to stand up to high-traffic and heavy-abuse applications. The T Series is constructed with a compression spring that allows the lock to exceed ANSI/BHMA Grade 1 testing requirements. Perfect for high-use institutional applications, the T Series lock delivers by providing a solid product at a solid price.

ANSI Function F109 – Turn/push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push button locking. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock.

SFIC = Small Size Interchangeable Core

Security

  • Pressure Release™ lever rotation standard prevents the damage to internal lock components when subjected to excessive force
  • Heavy-duty compression springs behind the rose provide consistent lever return and prevent lever sag
  • Inside levers are attached by Allen-head set screw, which prevents tampering or vandalism

Reliability

  • Trim is through-bolted with two 10-32 screws coated with thread sealant
  • Certified Grade 1 and UL10C 3-hour A label
  • Lever designs exceed ADA and state disability requirements

Compatibility

  • Adjustable door thickness from 1-3/4” to 2-1/8” to fit all common door thicknesses
  • Non-handed design
  • Does not require field disassembly for re-handing
Brand

Finishes

626 Satin Chrome
ANSI/BHMA Standard

Meets ANSI/BHMA A156.2, Series 4000, Grade 1
Usage

Heavy Duty
Lock Function

Entry (Entrance)
Lever Design

D (Dane)
Handing

Non-Handed
Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Backset

2-3/4"
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Screws

Furnished with combination screws for use in wood or metal doors and frames.
Cylinder Format

Small Format Interchangeable Core (SFIC)
