Product Overview

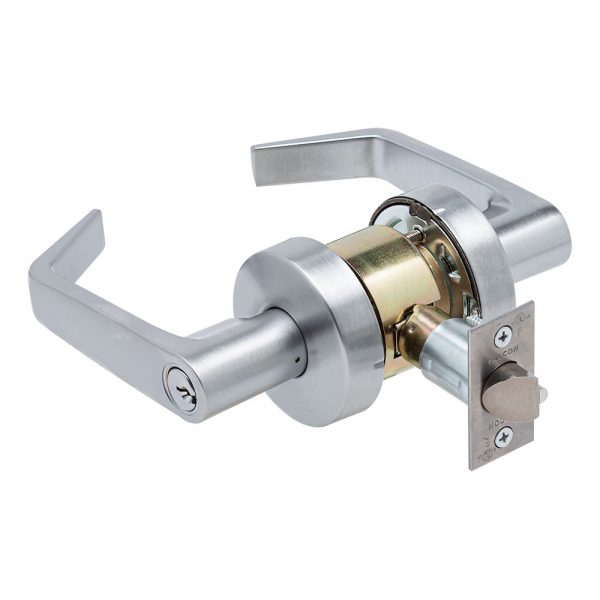

Falcon W511CPD SRD Grade 2 Entry/Office Cylindrical Lock, Key in Lever Cylinder, Dane Lever, Small Rose
When an affordable lock is needed for low to medium traffic doorways in office, government, retail, industrial or multi-family applications, the W Series lock fits perfectly. The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business – Allegion.

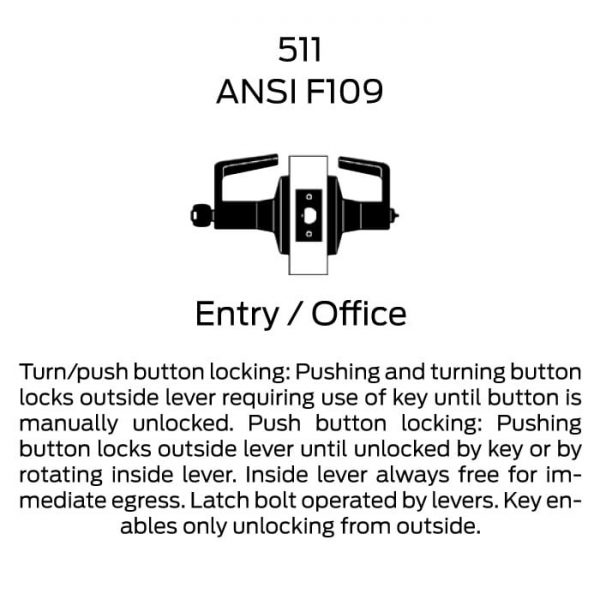

ANSI Function F109 – Deadlocking latch bolt by levers. Turn/push button locking. Pushing and turning button locks outside lever, requiring use of a key for unlocking the door until button is manually unlocked. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever is always free.
- FAL.W511.P6.DAN.SR._.C
- Small Rose W Lock has 2-9/16″ (65mm) diameter rose instead of 3-3/8″ (86mm)
- Non-handed for easy field assembly
- Heavy-duty springs for better lever return and to prevent sagging
- Manufactured to Allegion’s industry-leading quality standards
Brand | |
---|---|
Finishes | 613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome |
Lock Function | Entry (Entrance) |
Lever Design | SRD (Dane Small Rose) |
Rose Diameter | 2-9/16" (65mm) |
Usage | Medium Duty |
ANSI/BHMA Standard | Tested and certified under ANSI/BHMA A156.2, Grade 2 |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Fire Rating | UL/cUL listed up to 3 Hours – UL symbol on the latch front |
Cylinder & Keys | 6-pin conventional, keyed different, with 2 keys |
Keyway | Schlage C Keyway |
Backset | 2-3/4" |
Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
Latch | 1/2” throw, deadlocking – 1-1/8" x 2-1/4" face |
Handing | Non-Handed |
Door Thickness | 1-3/8" to 1-3/4" |
Warranty | 10 Year Limited |
