hager-1250-4.5x4.5-us32d

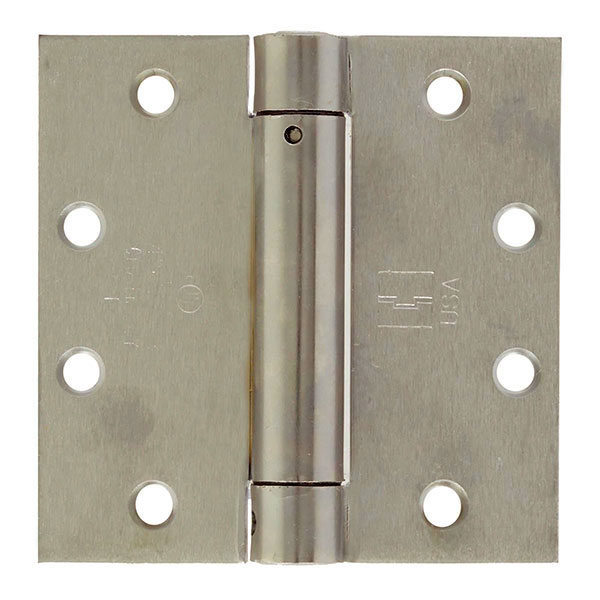

Hager 1150 4.5″ x 4.5″ UL Listed Stainless Steel Spring Hinge

Usually Ships: 3-5 Business Days
  • For automatic closing of fire-rated doors
  • Single acting spring hinge, square corner
  • Includes screws for metal and wood doors

Available Options:

Clear

Product Overview

Hager 1150 4-1/2″ x 4-1/2″ Full Mortise, Spring Hinge, Standard Weight, Square Corner, Stainless Steel

Today, the Hager name is synonymous with commercial hinges. In fact, they are the industry’s premier designer and manufacturer of commercial hinges. With legendary quality, time-tested durability, and consistent superior performance, Hager is the one name, and one brand, you can count on to provide it all.

  • Single Acting, Square Corner, Full Mortise – Spring Hinge
  • Stainless Steel with Stainless Steel Pin
  • ANSI K51071F
  • Not recommended on doors over 7’0″
  • For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing hinges. Do not use plain bearing hinges.
  • Full spring tension may not be required on all hinges
  • Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges

Brand

Finishes

629 Bright Stainless Steel, 630 Satin Stainless Steel
Size

4.5" x 4.5"
ANSI/BHMA Standard

Meets ANSI/BHMA A156.7
Gauge

0 .134
Fire Rating

UL listed for use with fire rated doors
Usage

Medium Duty
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
