Hager-1256-Full-Mortise-Spring-Hinge-Set

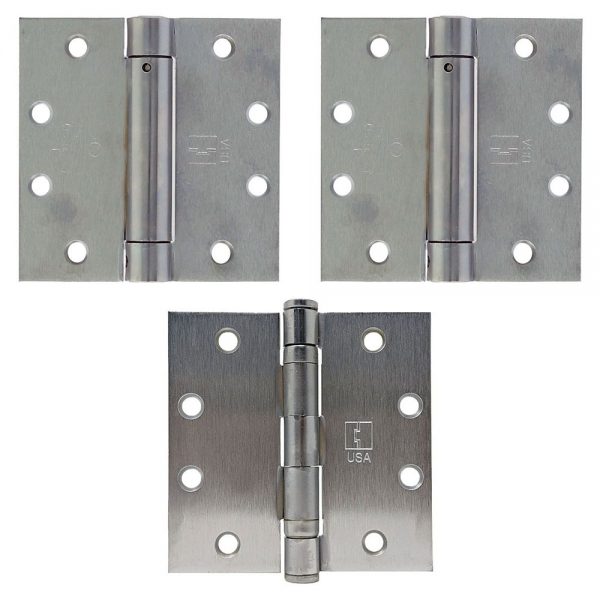

Hager 1256 4.5″ x 4.5″ Hinge Set, 2 Spring Hinges and 1 Ball Bearing Hinge

Usually Ships: 3-5 Business Days
  • Includes 2 spring hinges and 1 ball bearing hinge
  • For automatic closing of fire-rated doors
  • Includes screws for metal and wood doors

Available Options:

Clear

Product Overview

Hager 1256 4-1/2″ x 4-1/2″ Full Mortise Spring Hinge Set, Standard Weight, Square Corner

Today, the Hager name is synonymous with commercial hinges. In fact, they are the industry’s premier designer and manufacturer of commercial hinges. With legendary quality, time-tested durability, and consistent superior performance, Hager is the one name, and one brand, you can count on to provide it all.

  • Package includes two (2) each 1250 spring hinge and one (1) each BB1279 ball bearing hinge
  • Steel with Steel components ANSI K81071F
  • For use on 1-3/4” thick doors
  • Not recommended on doors over 7’0″
  • For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing hinges. Do not use plain bearing hinges.
  • Full spring tension may not be required on all hinges
  • Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges

Brand

Finishes

632 Bright Brass, 633 Satin Brass, 640 Oil Rubbed Bronze, 652 Satin Chrome, USP Prime Coat
Size

4.5" x 4.5"
ANSI/BHMA Standard

Meets ANSI/BHMA A156.7
Gauge

0 .134
Fire Rating

UL listed for use with fire rated doors
Usage

Medium Duty
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
