Product Overview
Hager 2525 Exit Latch, WTH Withnell Lever Design
Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications.
Hager 2525 Exit (ANSI F111) – Blank plate outside (13/16” projection). Inside lever is always unlocked
- WTN – Withnell lever design
- Standard door prep – 2-1/8″ diameter (cross bore), latch hole – 1″ diameter (edge bore)
- No exposed mounting screws
| Brand | |
|---|---|
| Finishes | US26D (626) Satin Chrome |
| Lock Function | Exit / Communicating |
| ANSI Grade | Meets BHMA ANSI A156.2, Series 4000, Grade 2 |
| Usage | Medium Duty |
| Backset | 2-3/4" |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Fire Rating | UL/cUL listed up to 3 Hours |
| Handing | Non-Handed |
| Latch | 1/2” throw, deadlocking – 1-1/8" x 2-1/4" face |
| Door Thickness | 1-3/8" to 1-3/4" |

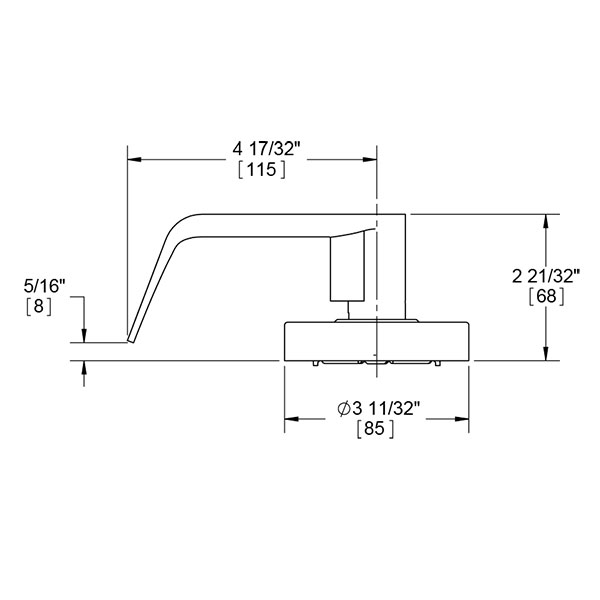

| Lever Design | WTN (Withnell) |
| Warranty | 5 Year |
