Hager 2930 Universal Application Electric Strike

Hager 2930 Universal Application Electric Strike, Dual Voltage 12/24VDC, ANSI/BHMA A156.31 Grade 1, UL Listed 3-Hour Fire-Rated, Non-Handed

Hager 2930 heavy-duty electric strikes are designed for use with cylindrical and mortise locksets and mortise exit devices. Several faceplate configurations eliminate the need for centerline relocation, making them perfect for new or retrofit construction.

• Designed for installation in hollow metal frames with Grade 1 cylindrical and mortise locksets with up to 3/4” (19 mm) throw latch bolts and 1″ deadbolts (25 mm)
• Retrofits existing ANSI 4-7/8” (124 mm) strike prep – no centerline relocation
• Fail secure standard; field reversible to fail safe (no disassembly)
• Field selectable voltage – 12/24V, AC/DC
• Up to 3/4” (919 mm) latch bolt and 1” (25 mm) deadbolt
• Non-handed (reversible)
• 1/8” (3 mm) horizontal alignment adjustment
• Factory tested 2,500 lbs.
• Exceeded 1,000,000 cycles
• UL tested 1,500 lbs.
• 70 ft-lb dynamic strength
• Internally mounted solenoid, no heat in keeper
• Tamper-resistant
• All stainless steel parts with durable diecast body for corrosion resistance
• Plug in tail connectors
• ANSI A156.31 compliant, Grade 1
• UL – 1034 Burglary Resistant (interior use application)

Electrical Specifications

• 600/300 @ 12/24V DC – Solenoid
• SPDT, 3A @ 30VDC – LBM (Optional)
• SPDT, 3A @ 30VDC – DSM (Optional)
• SPDT, 3A @ 30VDC – DBM (Optional)

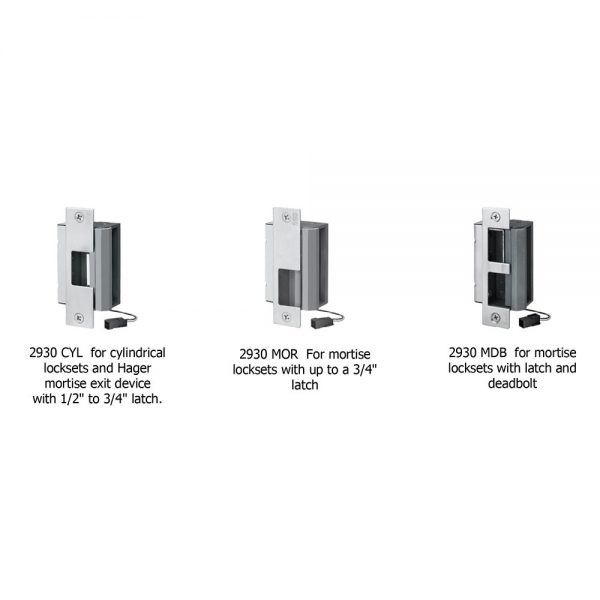

Models

• 2930 CYL for cylindrical locksets and Hager mortise exit device with 1/2″ to 3/4″ latch
• 2930 MOR For mortise locksets with up to a 3/4″ latch
• 2930 MDB for mortise locksets with latch and deadbolt
