Hager 3216 Thumbturn x Occupancy Indicator Deadbolt

Usually Ships: 3-5 Business Days

Ideal for Commercial Restroom Doors
Door Bolt Occupancy Indicator x Inside Turn
Includes Emergency Release Key

Available Options:

Finish

Clear

Quantity:

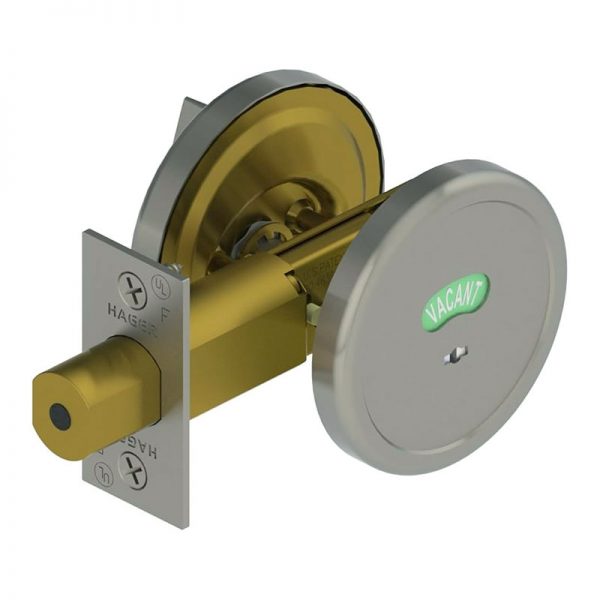

Hager 3216 Thumbturn x Occupancy Indicator Deadbolt

Hager 3200 Series Grade 2 deadlock provides a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. The 3200 Series is an economical alternative to Grade 1 when Grade 1 is not required. It is a perfect complement to the 3500 or 2500 Series for extra protection against break-in and is backed by a lifetime warranty.

Thumbturn x Occupancy Indicator: Deadbolt operated by thumbturn inside, emergency override key outside. Outside indicator displays “In Use” when deadbolt is thrown and “Vacant” when deadbolt is retracted.

Brand	Hager
Finishes	US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel
Deadbolt Type	Indicator
Usage	Medium Duty
ANSI/BHMA Standard	BHMA Certified ANSI A156.5 Grade 2
Bolt	1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Backset	2-3/4"
Strike	1-1/8” x 2-3/4“ square corner
Fire Rating	UL/cUL Listed for all functions up to 3 hours for "A" label single doors
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Door Thickness	1-3/8" to 1-3/4"
Warranty	Limited Lifetime Warranty
