Hager-3753-WTN-US26D

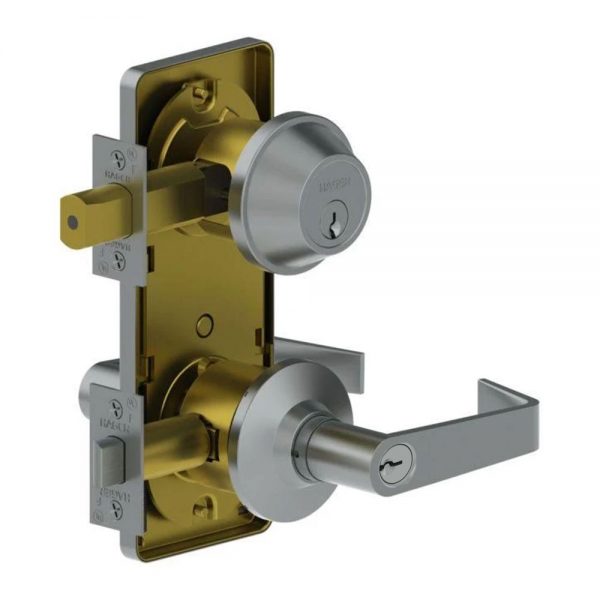

Hager 3753 WTN Entry Double Locking Interconnected Lock

Usually Ships: 3-5 Business Days
  • BHMA Certified ANSI A156.12 Grade 2
  • ANSI F97 function – entrance double locking
  • UL listed for 3-hour fire door

Available Options:

Product Overview

Hager 3753 WTN Entry Double Locking Interconnected Lock – Grade-2, ANSI F97, 4″ CTC Length, WTN Withnell Lever, T-Strike, Schlage C Keyway, US26D Satin Chrome Finish

Hager 3700 Series Grade 2 interconnected lock is a perfect match for residential or commercial applications such as apartment buildings and assisted living facilities. These versatile locks provide a single action for retracting the latchbolt and deadbolt simultaneously for panic-free egress. They are supplied with an optional exterior escutcheon plate standard and are backed by a lifetime warranty.

Function 53: Interconnected Double Locking Entry, ANSI F97 – Deadbolt thrown or retracted by key outside or by inside thumbturn. Bolt automatically deadlocks when fully thrown. Deadlatch retracted by key outside when locked by pushing turnbutton on inside lever. Outside lever may be fixed in locked position by rotating turnbutton. Inside lever retracts deadbolt and deadlatch simultaneously for immediate exit.

  • 4” (102 mm) center of deadbolt to center of lock chassis
  • 2-1/8” (54 mm) diameter (bore)
  • Latch hole: 1” (25 mm) diameter (cross bore)
Brand

Finishes

US26D (626) Satin Chrome
Lock Function

Double Locking Entry
Lever Design

WTN (Withnell)
Backset

2-3/8", 2-3/4"
Latch

1/2” Throw – stainless steel • 1-1/8” x 2-1/4” faceplate for 2-3/4” backset • 1” x 2-1/4” faceplate for 2-3/8” backset
Deadbolt

1” Throw – brass with concealed steel roller to prevent sawing or cutting • 1-1/8” x 2-1/4” faceplate for 2-3/4” bracket • 1” x 2-1/4” faceplate for 2-3/8” faceplate
Keyway

Schlage C Keyway
Strike

3933 square corner t-strike with plastic dust box, 1-1/8” x 2-3/4” • 3930 square corner strike plate with dust box, 1-1/8” x 2-3/4”
Usage

Medium Duty
ANSI/BHMA Standard

BHMA Certified ANSI A156.12 Grade 2
ANSI Function

F97
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL Listed for all functions up to 3 hours for “A” label single doors
Handing

Non-Handed
Door Thickness

1-3/8" to 1-3/4"
