Product Overview

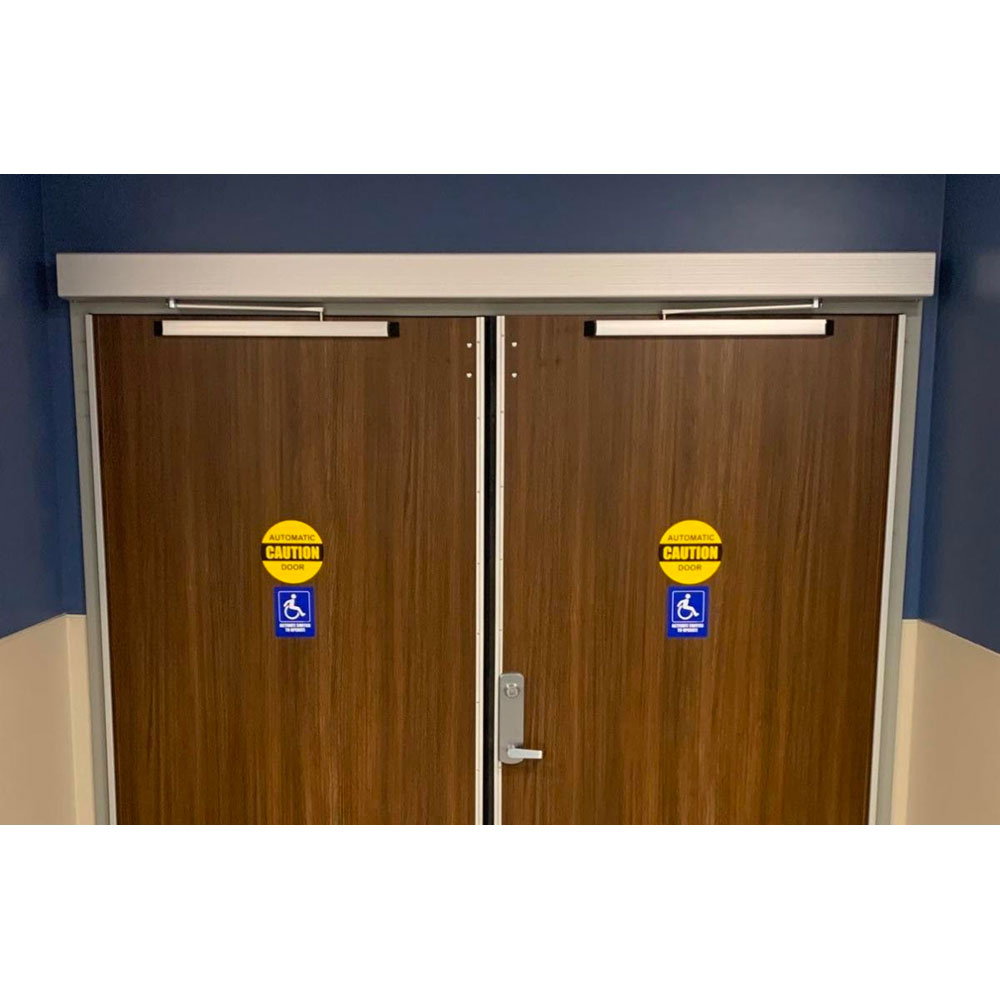

Hager 8319 Simultaneous Pair Automatic Operator (2 Units, Double Cover)
Low Energy Auto Operator for Paired Door Openings. Simultaneous or Independent Applications.
- Non-handed
- Operates as a manual closer with or without power
- Onboard power supply for accessories i.e. electric and magnetic locks, sensors, etc.
- Built-in adjustable door stop for protection against wind or abusive environments
- Blow open function for smoke ventilation (alarm contacts)
- Equipped with cycle count
- Factory setting for ANSI 156.19 speed requirements AND hold time delay
- Night mode allows the exterior actuator to be deactivated by a rocker switch on the side of the operator
- On/Off/Hold Open Switch: Standard
- Fire Alarm input shunts swing activations until FACP is manually reset
- Memory is flash upgradeable
| Brand | |
|---|---|
| Finishes | Clear Anodized Aluminum |
| Opening Width | 72", 84", 96" |
| Mounting | Pull Side (Track Arm), Push Side (Standard Arm) |
| Usage | Standard Duty |
| Handing | Non-Handed |
| Door Weight | up to 350 lbs. |
| Certifications | ANSI Meets A156.19, UL/cUL, UL325 Listed |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Warranty | 2 Years |
