Product Overview
Hager BB1261 Full Mortise 5 Knuckle Standard Weight Ball Bearing Swing Clear Hinge for Beveled Edge Door
Today, the Hager name is synonymous with commercial hinges. In fact, they are the industry’s premier designer and manufacturer of commercial hinges. With legendary quality, time-tested durability, and consistent superior performance, Hager is the one name, and one brand, you can count on to provide it all.
- ANSI A8122
- For use in hospitals or other institutional type buildings
- For beveled edge doors
- Two ball bearings
- For use on medium weight doors or doors requiring medium frequency service
- Complies with NFPA80 requirements for use on fire-rated door assemblies
- When opened 90°, door projects 3/32″ (2 mm) past stop of jamb
- Assembled RH – reversible to LH
| Brand | |
|---|---|
| Finishes | 600 Prime Coat, 640 Oil Rubbed Bronze, 652 Satin Chrome |
| Hinge Type | Full Mortise |
| Size | 4.5", 5" |
| Knuckles | Five |
| Bearings | Ball Bearing |
| ANSI/BHMA Standard | ANSI A8122 |
| Usage | Medium Duty |
| Fire Rating | Certified to meet UL standards (3 Hour Fire-Rated) |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
Related Products
-

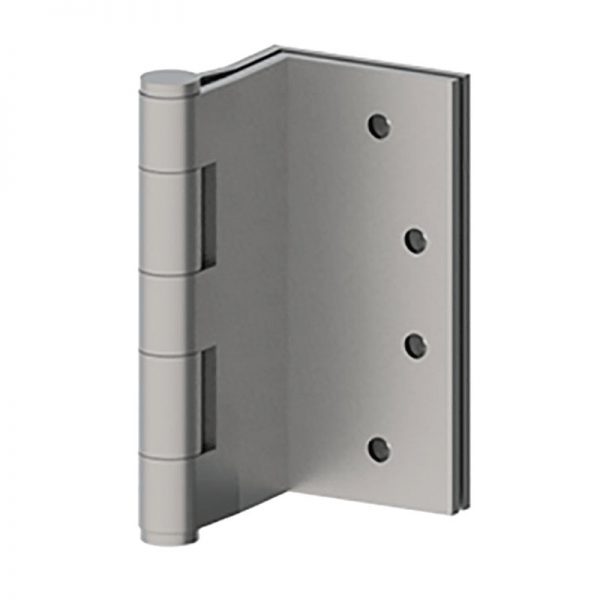

Hager - BB1260 Ball Bearing Swing Clear Hinge
