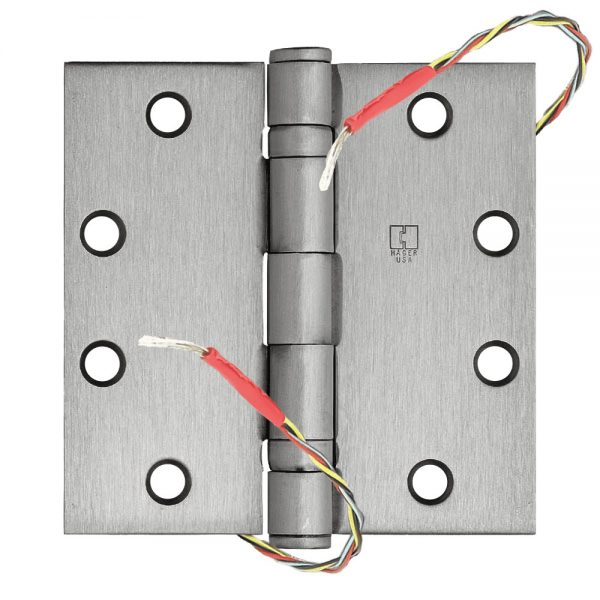

Hager BB1279 ETW-12 4.5″ x 4.5″ Ball Bearing Electrified Hinge, 12-Wire

Usually Ships: 3-5 Business Days
  • ETW-12 – electric through-wire hinge (12-wire)
  • Allows electrical currents to pass from jamb through the hinge into door
  • .134 standard weight – ball bearing

Available Options:

Product Overview

Hager BB1279 4-1/2″ x 4-1/2″ Steel Full Mortise Standard Weight Five Knuckle Ball Bearing Electrified Hinge, ETW-12, Concealed Electric Through-Wire

The Hager name is synonymous with commercial hinges. In fact, they are the industry’s premier designer and manufacturer of commercial hinges. With legendary quality, time-tested durability, and consistent superior performance, Hager is the one name, and one brand, you can count on to provide it all.

  • 12 continuous electric conductors (28 gauge wire)
  • Allows operation of devices requiring power such as electric locks, electric strikes, and electric latch retraction exit devices
  • For use on medium weight doors or doors requiring medium frequency service
  • Low voltage electric current transfer capability only
  • NRP not necessary as hinges are cross pinned and are not field removable
Brand

Finishes

652 Satin Chrome
Hinge Type

Full Mortise
Size

4.5" x 4.5"
Knuckles

Five
Bearings

Ball Bearing
ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1
Usage

Medium Duty
Gauge

0 .134
Fire Rating

Certified to meet UL standards (3 Hour Fire-Rated)
Electrical Specifications

Up to 48VDC at 3.5 amps continuous or 16.0 amps pulse
