HES DB-2 Faceplate Kit for 1006 Electric Strike

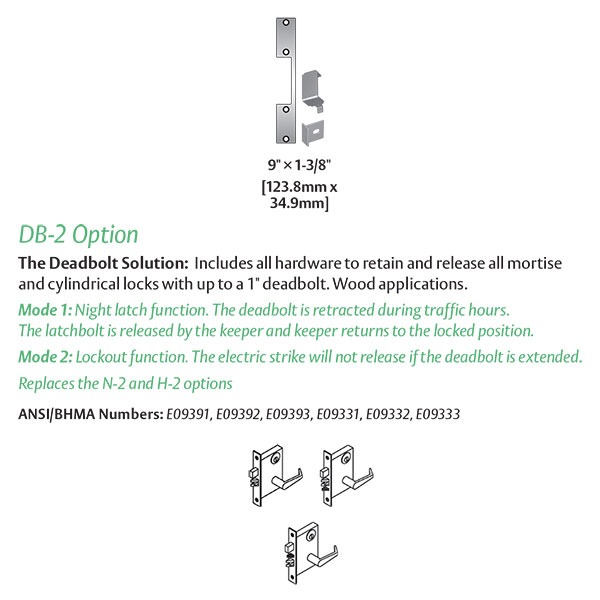

HES DB-2 Kit, 1006 Series, 9″ × 1-3/8″ Faceplate

This deadbolt solution offers two modes of functionality; night latch and lockout. (functional operation modes described below.)

• The Deadbolt Solution: Includes all hardware to retain and release all mortise and cylindrical locks with up to a 1″ deadbolt. Wood applications.
• Mode 1: Night latch function. The deadbolt is retracted during traffic hours. The latchbolt is released by the keeper and keeper returns to the locked position.
• Mode 2: Lockout function. The electric strike will not release if the deadbolt is extended. Replaces the N-2 and H-2 options
• ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333
