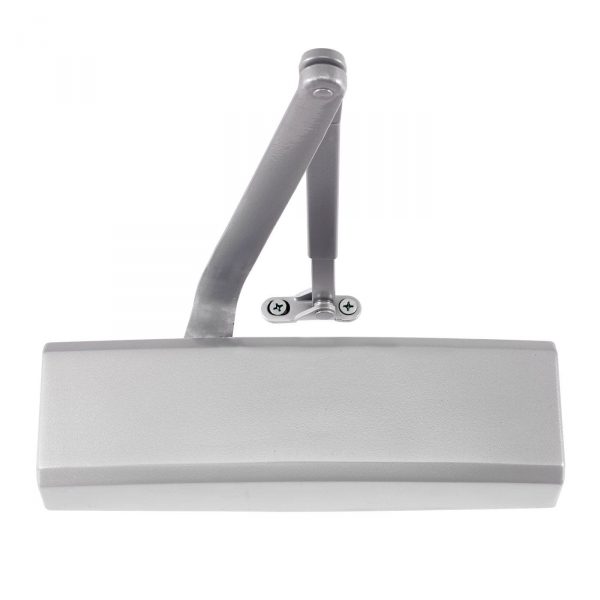

LCN 4050A Rw/PA Door Closer

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA A156.4 Grade 1 Certified
  • Fully adjustable spring size 1-6
  • Regular, top jamb, or parallel arm mount

Available Options:

Product Overview

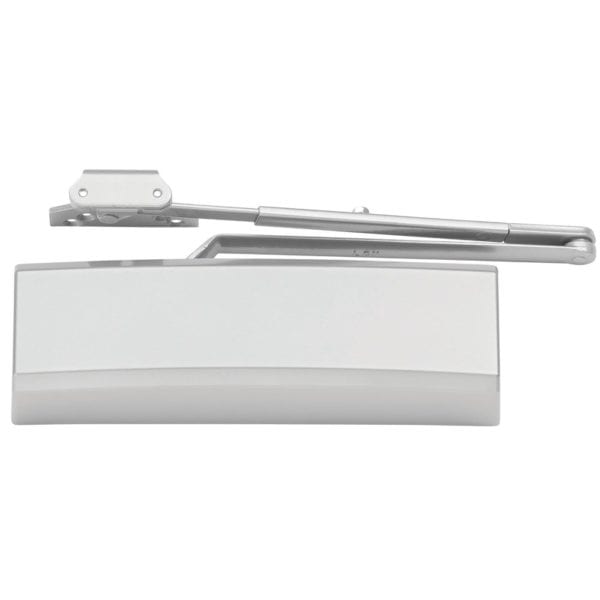

LCN 4050A RWPA Heavy Duty Door Closer, Regular Arm with Parallel Shoe

The 4050A Series cast aluminum closer is engineered for durability and built tough to excel in the harsh environments of high frequency, highly abusive traffic areas. It is ideal for commercial and industrial building applications and competitive specification situations that demand a combination of quality, reliability, and value.

This closer offers premium features like powder coating, a full complement bearing, Liquid X All Weather Fluid, which eliminates the need for seasonal adjustment, and a 25-year warranty.

  • Cast aluminum bodyƒ
  • Tri-packed: regular, top jamb, or parallel arm mount
  • All-weather fluid
  • UL 10Cƒ Fire-Rated
  • Meets BAA – Buy American Act

Brand

Finishes

689 Aluminum (Powder Coated), 691 Light Bronze (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated), 696 Brass (Powder Coated)
Templating (Hole Pattern)

2-3/8" x 6-3/4"
Usage

Heavy Duty
Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

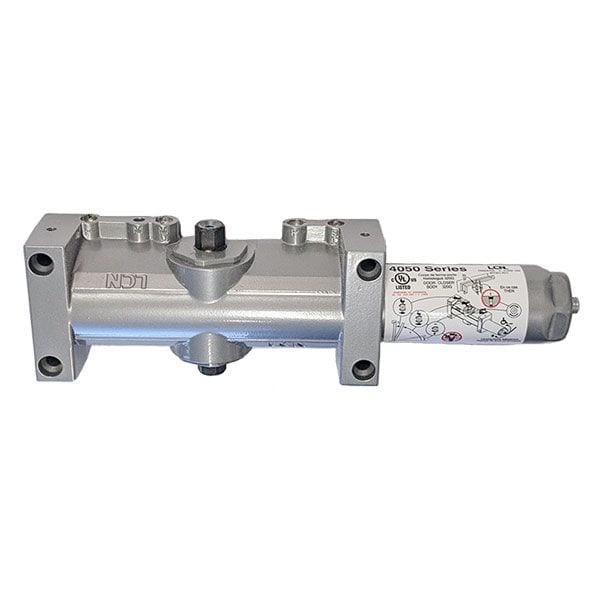

Body Construction

Cast Aluminum Body
Spring Size

Adjustable Spring Size 1-6
Fluid

All Weather Fluid
Door Application

Hollow Metal or Wood
Handing

Non-Handed
Certifications

Tested and certified under ANSI Standard A156.4 – Grade-1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL and cUL Listed – up to 3 Hours (Non-Rated with Hold Open Arms)
Cover

Full Cover
Fasteners

Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts
Warranty

25 Years
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
