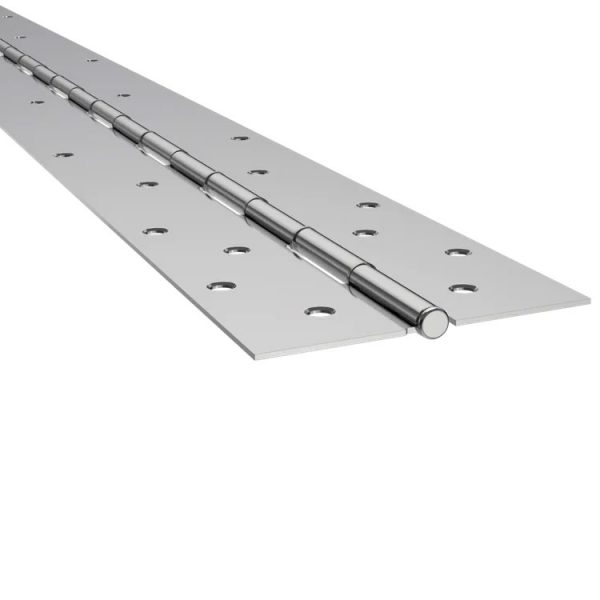

Markar FM200 Heavy Duty Full Mortise Edge Mounted Pin & Barrel Continuous Hinge

Usually Ships: 5-10 Business Days
  • Heavy-duty 14 gauge 1012 carbon steel
  • Supports weights up to 600lbs
  • .187″ diameter stainless steel pin (rod)

Available Options:

Clear

Product Overview

Markar FM200 Series Full Mortise Edge Mounted Pin & Barrel Continuous Hinge, Zinc Plated

The Markar FM200 Series Full Mortise Continuous Pin and Barrel Hinge is edge-mounted and used in high-traffic, high-frequency use doors. This hinge works well in locations that would normally call out for anchor hinges, pivot reinforcement hinges or thrust pivot unit and hinge sets. Additionally, this hinge saves on special door and frame preparation charges and can be used on both fire-labeled and non-labeled openings.

Features

  • For use in high traffic, frequently used doors
  • Supports weights up to 600 lbs, 4’0″ maximum door width
  • Fasteners are concealed when door is closed
  • Fastener screw pack includes custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws
  • All hinges shall be furnished with manufacturer’s recommended hardware pack per specific model application
  • Symmetrically templated hole pattern

Benefits

  • Saves on special door and frame preparation charges and time
  • Can be used on both fire labeled and non-fire labeled openings
  • Each knuckle includes nylon bearing at each separation for a quiet, smooth, self-lubricating operation
  • Easy installation
  • No exposed mounting fasteners
  • Guaranteed for the life of the opening against defects in material or workmanship

Certifications

  • ANSI/SDI 250.13 Certified
  • ASTM E330 Certified
  • UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
  • Warnock Hersey listing
  • ASTM E1996 Certified
  • ASTM E1886 Certified
  • Florida Building Code Approved TAS 201, 202, 203 (old)
  • ANSI/BHMA Standard A156.26
Brand

Finish

Zinc Plated
Material

Carbon Steel / Zinc Plated
Usage

Heavy Duty
ANSI/BHMA Standard

ANSI/BHMA Standard A156.26 Grade 1, ANSI/SDI 250.13 Certified
Fire Rating

UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies, Warnock Hersey Listing
Continuous Hinge Type

Full Mortise (Concealed)
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
