Product Overview

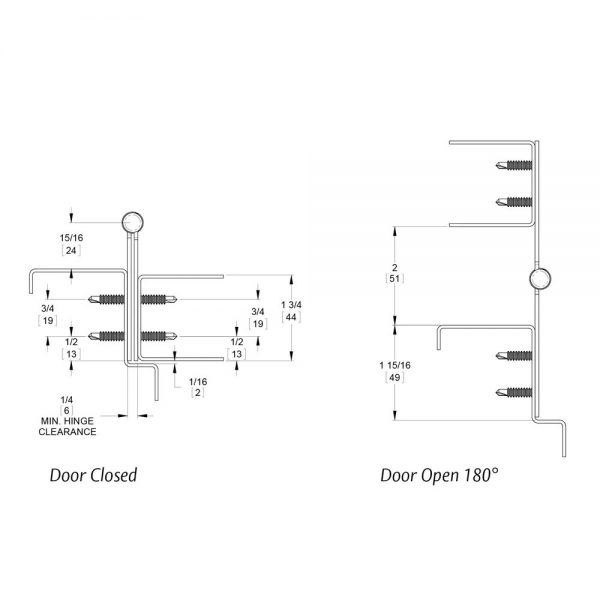

Markar FM300 Series Full Mortise Edge Mounted Stainless Steel Pin & Barrel Wide Throw Continuous Hinge, 2″ Clearance, Satin Stainless Steel
The Markar FM300WT Series Wide Throw Full Mortise Continuous Pin and Barrel Hinge is edge-mounted and used on high-traffic, high-abuse doors. This hinge works well in locations that would normally call out for anchor hinges, pivot reinforcement hinges or thrust pivot unit and hinge sets. This hinge saves on special door and frame preparation charges, is easy to install, and can be used on both fire-labeled and non-labeled openings.
Features
- Used for high traffic, high abuse doors
- Fire rating up to 3 hours on hollow metal doors
- Fasteners are concealed when door is closed
- Symmetrically templated hole pattern
Benefits
- Saves on special door and frame preparation charges
- Hinge has bearings at each separation for quiet, smooth, self-lubricating operation
- Used in place of anchor hinges, pivot reinforcement hinges, or thrust pivot unit and hinge sets
- For fire labeled or non-labeled openings
- Easy to install
Certifications
- UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
- Warnock Hersey listing
- ANSI/BHMA Standard A156.26
Brand | |
---|---|
Finish | Stainless Steel |
Material | 304 Stainless Steel |
Usage | Heavy Duty |
ANSI/BHMA Standard | ANSI/BHMA Standard A156.26 Grade 1, ANSI/SDI 250.13 Certified |
Fire Rating | UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies, Warnock Hersey Listing |
Continuous Hinge Type | Full Mortise (Concealed), Wide Throw |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
